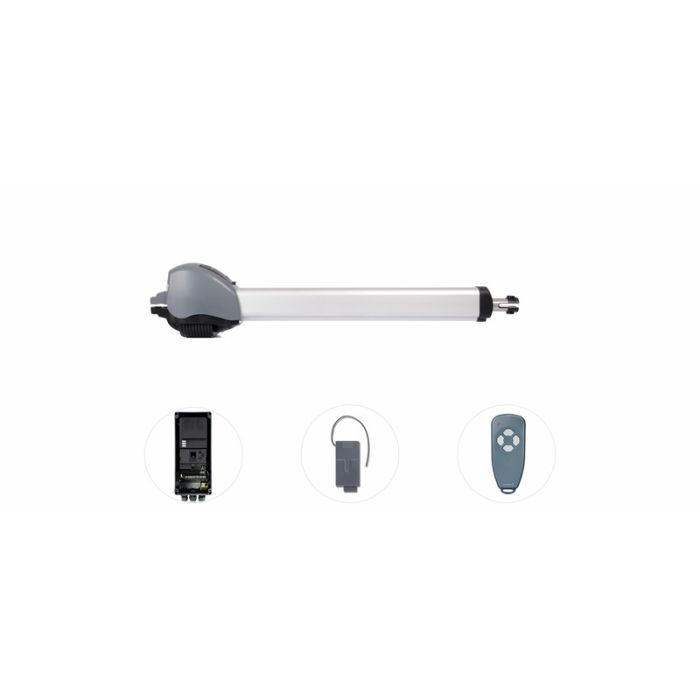

Comfort 516 L Set for single-leaf swing gates up to 3.5 m, 868 MHz Multi-Bit
Set for single-leaf swing gates up to 3.5 m: 24 V DC motor, 1,000 N, 2.0 cm/s, 115°.
SKU
120243
Note
Product added to cart.
Loading...
Comfort 516 L Set for single-leaf swing gates up to 3.5 m, 868 MHz Multi-Bit
Scope of delivery:
- Motor unit, pre-wired 6x0.75 mm² 1,500 mm
- External control Control x.52
- Digital 168 Module antenna, 868 MHz Multi-Bit
- Digital 384 Mini hand transmitter 4-channel, 868 MHz Multi-Bit
- Gate and angle bracket
- Installation material
Operator – Features:
- Current-dependent obstacle detection - no active closing edge protection necessary
- DC motor: soft start and stop are gentle on the door, separately adjustable opening and closing speeds enable fast opening and standard-compliant closing
- End position adjustment directly at the control
- Reference point technique
- Very quiet mechanics
- All mechanical parts protected against weather influences
- Sturdy and UV-resistant plastic housing
- Gate and pillar angle for easy motor mounting
- Lockable unlocking device
Control – Functions:
- Power-saving technology
- Soft start/soft stop/soft run
- Electronic anti-deferral device
- Blocking protection
- Runtime limit
- Automatic feed function (can only be used in conjunction with a light barrier)
- Gate open time and prewarning time separately programmable
- Lighting duration programmable and switchable by radio
- Automatic switch-off OPEN and CLOSE separately programmable
- Partial opening programmable
- Active leaf function programmable for 2-leaf gates
- Running speed OPEN and CLOSE separately programmable
- Soft run position OPEN and CLOSE separately programmable
- Soft run speed OPEN and CLOSE separately programmable
- Relay output programmable: signal light, door position OPEN or CLOSED, wipe pulse (1 s), fault, lighting
- Cycle counter
- Maintenance interval programmable
- Error signaling with error memory
- Multi-level reset function (control, safety, radio, etc.)
Control – Operation:
- Marantec EOS programming
- Programming and status message via LC display
- Programming and diagnostics possible via optional external handheld programmer
Control – Structure and connection:
- Pluggable radio receiver
- Connection (conventional) for pushbutton
- Connection (conventional) for 2-wire or 4-wire photoelectric sensor OPEN and CLOSED
- Connection (conventional) for holding circuit
- Connection (conventional) for 8.2 kOhm contact strip OPEN and CLOSED
- Connection (conventional) for 24 V-DC signal lamp
- Connection (conventional) for electric lock 24 V-DC
- Connection (MS bus) for handheld programmer and expansion modules
- Connection for battery backup
- Output 24 V-DC, max. 50 mA
Comfort 516 L
Product descriptive data
Connection type
Conventional
Continuous sound pressure level (max.) [dB(A)]
70
End position system
Reference point technique
Protection class
IP44
Overload protection
Shutdown via current consumption
Application area
Width gate wing (max.) [m]
3.5
Weight of gate leaf (max.) [kg]
200
Height gate wing (max.) [m]
2
Gradient (max.) [%]
0
E dimension (min./max.) [mm]
0/260
Temperature (min./max.) [°C]
-20/60
Performance data
Operating mode (duty cycle)
S2 - 5 min
Running speed (max.) [cm/s]
2
Opening angle (max.) [°]
115
Push and pull force (max.) [N]
1,000
Electrical data
Operating voltage [V]
24 V-DC
Operating voltage type
Direct current
Motor voltage [V]
24 V-DC
Rated current [A]
1.7
Dimensions and weights
Weight [kg]
6.4
Movement stroke (max.) [mm]
613.5
Dimensions (WxHxDmin/Tmax) [mm]
122x198x923/1536.5
Control x.52
Product descriptive data
Protection class
IP65
Protection class
I
Application area
Temperature (min./max.) [°C]
-20/60
Electrical data
On-site supply
230 V/1~/50 Hz 230 V/1~/60 Hz
Power consumption [VA/W/kW]
0.4 kW
Power consumption in standby [VA/W/kW]
3.2 W
Motor voltage [V]
24 V-DC
Rated current [A]
1.7
Control voltage [V]
24 V-DC
Dimensions and weights
Dimensions (WxHxD) [mm]
120x240x100
