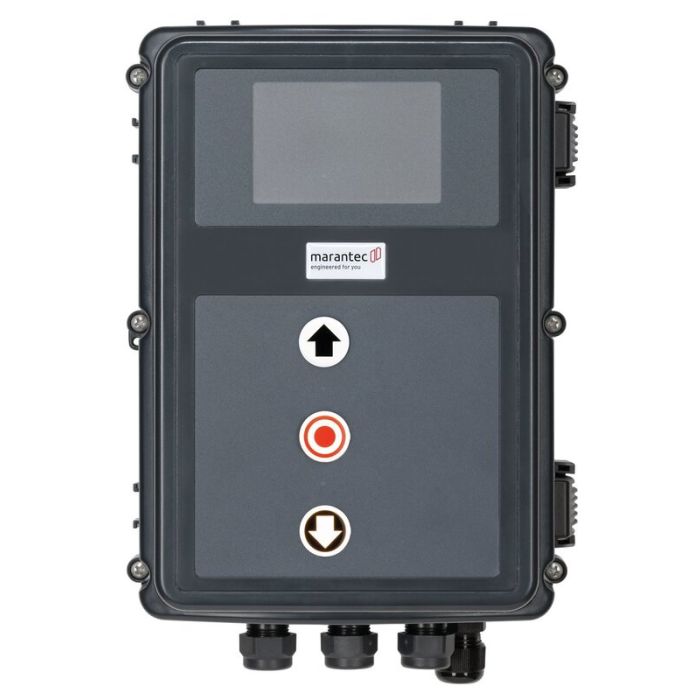

CS 320 in standard housing 230 V (Schuko plug)

230 V/1~ with LC display in CS standard housing and 3-series pushbutton in cover, 1,000 mm cable and Schuko plug type F.
SKU
185657
4062434014165
CS 320 in standard housing 230 V (Schuko plug)

Scope of delivery:

  • Control unit CS 320 230 V/1~ with LC display in CS standard housing and 3-fold pushbutton in cover, 1,000 mm cable and Schuko plug type F

Functions:

  • 4 programmable relay outputs with 44 functions
  • 2 programmable inputs with 27 functions
  • Changing the direction of rotation via platinum pushbutton/display
  • Intermediate position programmable (only with AWG)
  • Adjustable force limit in OPEN direction (only with AWG)
  • Rotation direction monitoring and detection (only with AWG)
  • Integrated gate run counter
  • Programmable maintenance alarm (PIN code protected)
  • Integrated error memory (readout of all error messages indicating frequency and cycle of last occurrence) only with LCD monitor

End position setting:

  • Via mechanical limit switches (MEC) and/or via absolute encoders (AWG)
  • Setting via platinum pushbutton or plug-in LCD monitor

Operation:

  • Platinum pushbuttons and LEDs for status indication (standard)
  • Pluggable LC display with plain text display
  • 3-button navigation/status and diagnostic messages

Structure and connection:

  • Switchable transformer from 230 V/1~/3~ to 400 V/3~
  • Short-circuit proof extra-low voltage
  • Illuminated cover keypad (night illumination)
  • Housing protection for printed circuit board
  • Adjustable, preassembled wall brackets
  • Connection for elements of the safety circuit
  • Connection for closing edge protection (opto, 8.2 kOhm, pressure wave bar or leading light barrier) in CLOSE direction
  • Connection for closing edge protection (8.2 kOhm and opto) in OPEN direction
  • Connection for 2 light barriers (2-wire, relay, NPN, PNP) with/without testing
  • Connection for wicket door and slack rope switch PL c cat. 2 (8.2 kOhm) with testing according to EN 12453:2017
  • Connection for 2 light grid systems with/without testing
  • Connection for radar presence detector
  • Interface for connecting a frequency inverter
  • Interface for connecting expansion modules
  • Slots for radio module and weekly timer
  • Slot for 2-channel radio transmission system for wireless signal transmission of closing edge system and/or safety circuit
  • Control of the magnetic brake via relay output
  • For operators with externally switched brake, a brake monitoring module is additionally installed (BWM1)
  • Supply for external devices (24 V-DC/500 mA and 230 V-AC/1 A)

Optional:

  • LCD monitor with plain text display
  • MS-Bus extension module two-way traffic control
  • MS-Bus extension module retract protection
  • Integrated main switch
  • Customized cover foils
  • Control in steel cabinet
  • A second CS 320 can be coupled via MS-BUS in DUO function

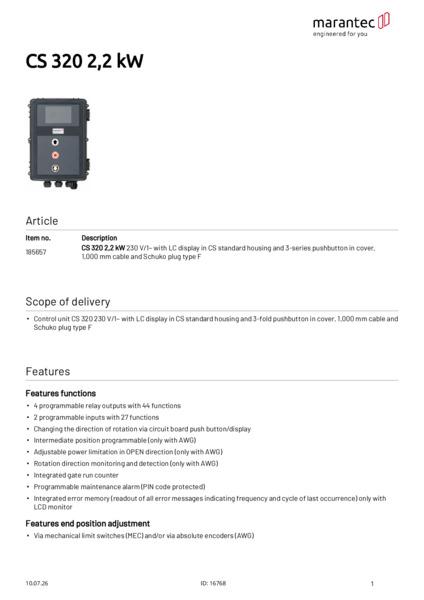

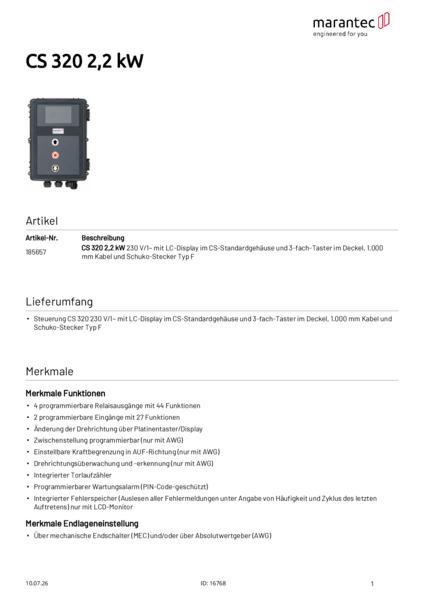

CS 320 2,2 kW
Product descriptive data
Housing type CS Standard
Protection class IP65
Display type LCD
Main switch in the control cover Without main switch
Pushbutton in the control cover Electronic 3-series pushbutton CS
Emergency stop in the control cover Without emergency stop
Function switch in the control cover Without function switch
Power plug Schuko plug type F
Application area
Temperature (min./max.) [°C] -10/45
Performance data
Operating mode (control) Deadman
Electrical data
On-site fuse protection (mains operation 230 V /1~) [A] 10
On-site supply 230 V/1~/50 Hz
Load capacity Power (max.) [kW] 2.2
Switching current (max.) [A] 8
Control voltage [V] 24 V-DC
Dimensions and weights
Dimensions (WxHxD) [mm] 215x275x190
