RK 1" - 16 B-1 Roller chain 1" DIN 8187, 5 m

Roller chain 1" DIN 8187, 5 m.
SKU
99194
4062435008514
RK 1" - 16 B-1 Roller chain 1" DIN 8187, 5 m

Scope of delivery:

  • Roller chain
RK 1" - 16 B-1
Product descriptive data
Design Simplex
Material Steel (galvanized)
Performance data
Breaking force (max.) [N] 60,000
Dimensions and weights
Joint surface [mm] 2.1
Weight [kg] 2.7

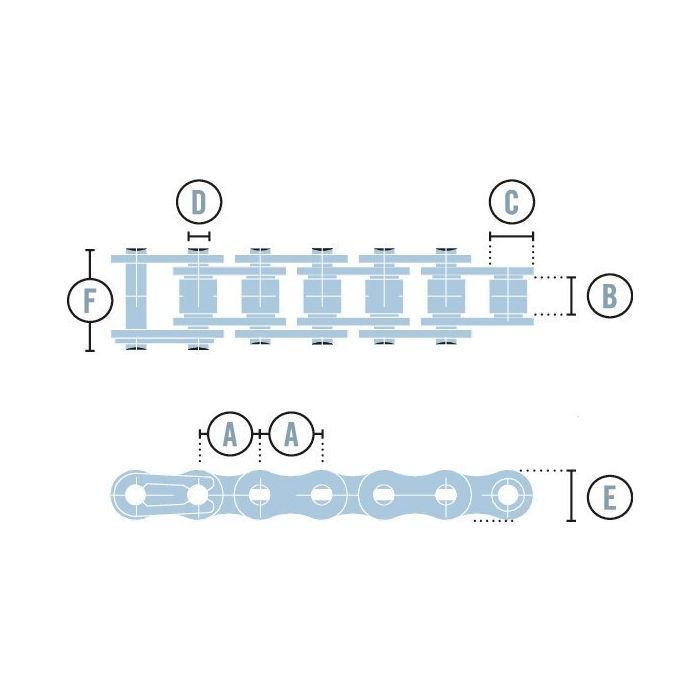

Dimension A [mm] 25.4
Dimension B [mm] 17.02
Dimension C [mm] 15.88
Dimension D [mm] 8.28
Dimension E [mm] 21
Dimension F [mm] 41.5
Marantec Marienfeld GmbH & Co. KG
Remser Brook 11
33428 Marienfeld



For questions to the manufacturer, please use this Contact form.

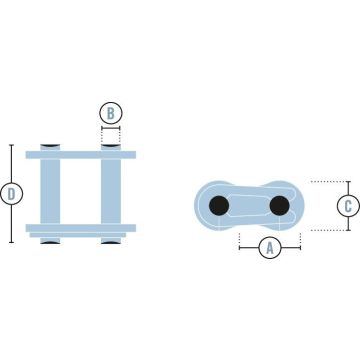

KRSK 1" - 16 B-1 Chain lock 1" DIN 8187
