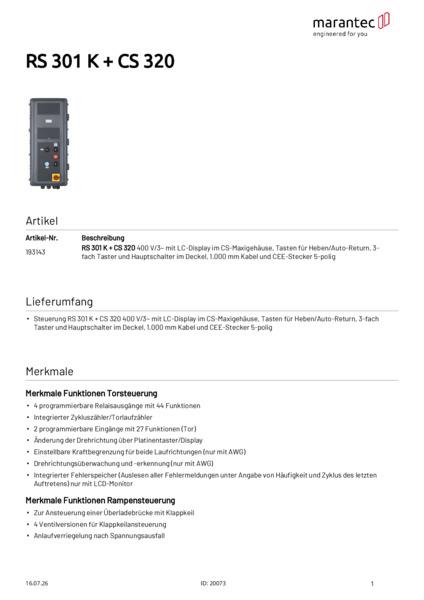

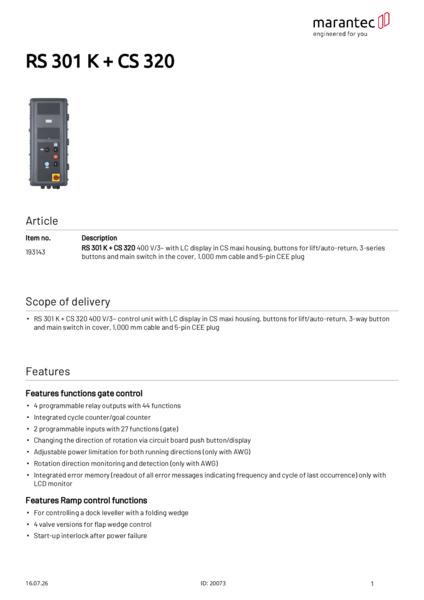

RS 301 K + CS320 for dock levellers with folding wedge

400 V/3~ with LC display in CS maxi housing, buttons for lift/auto-return, 3-series buttons and main switch in the cover, 1,000 mm cable and 5-pin CEE plug.
SKU
193143
4062435001935
RS 301 K + CS320 for dock levellers with folding wedge

Scope of delivery:

  • RS 301 K + CS 320 400 V/3~ control unit with LC display in CS maxi housing, buttons for lift/auto-return, 3-way button and main switch in cover, 1,000 mm cable and 5-pin CEE plug

Door control – Functions:

  • 4 programmable relay outputs with 44 functions
  • Integrated cycle counter/goal counter
  • 2 programmable inputs with 27 functions (gate)
  • Changing the direction of rotation via circuit board push button/display
  • Adjustable power limitation for both running directions (only with AWG)
  • Rotation direction monitoring and detection (only with AWG)
  • Integrated error memory (readout of all error messages indicating frequency and cycle of last occurrence) only with LCD monitor

Ramp control – Functions:

  • For controlling a dock leveller with a folding wedge
  • 4 valve versions for flap wedge control
  • Start-up interlock after power failure
  • Rotary field test/phase failure detection
  • 1 programmable input with 4 functions (bridge)
  • Control of the gate sealing (Shelter function)
  • Enabling/locking the automatic gate
  • Release/locking by external gate control
  • Auto Return

End position setting:

  • Via mechanical limit switches (MEC) and/or via absolute encoders (AWG)
  • Setting via circuit board push button or plug-in LCD monitor

Operation:

  • 1 Direction key
  • 3-series push button gate control
  • Auto return button
  • Pluggable LC display with plain text display
  • 3-button navigation/status and diagnostic messages

Structure and connection:

  • Integrated main switch
  • Integrated fuses for the hydraulic power unit (standard: 4 A, on request 6.3 A)
  • Switchable transformer from 230 V/1~/3~ to 400 V/3~
  • Power supply for external devices (RS: 24 V-DC/250 mA; CS: 24 V-DC/500 mA and 230 V-AC/1 A)
  • Short-circuit proof extra-low voltage
  • Connection of indoor and outdoor traffic lights
  • Connection of wheel wedge and start-up sensor
  • Connection of loading light or signal horn
  • Connection for locking the dock leveller
  • Connection for locking the gate system
  • Connection for elements of the safety circuit
  • Connection for closing edge protection (opto, 8.2 kOhm, pressure wave bar or leading light barrier) in CLOSE direction

Optional:

  • Automatic return
  • Control in steel cabinet
RS 301 K + CS 320
Product descriptive data
Housing type CS-Maxi
Protection class IP65
Display type LCD
Main switch in the control cover Main switch 4-pole
Pushbutton in the control cover Electronic 3-series pushbutton CS Lift Auto Return
Emergency stop in the control cover Without emergency stop
Function switch in the control cover Without function switch
Power plug CEE plug 5-poles. red
Application area
Temperature (min./max.) [°C] -10/45
Performance data
Operating mode (control) Deadman
Electrical data
On-site supply 180-440 V/3~/N/PE/50/60 Hz
Current consumption per valve (max.) [A] 0.8
Mains frequency [Hz] 50/60
Control voltage [V] 24 V-DC
Switching current gate control (max.) [A] 8
Switching current ramp control (max.) [A] 6.3
Load capacity power gate control (max.) [kW] 2.2
Load capacity Ramp control power (max.) [kW] 2.2
Dimensions and weights
Dimensions (WxHxD) [mm] 260x550x245
Marantec Marienfeld GmbH & Co. KG
Remser Brook 11
33428 Marienfeld
