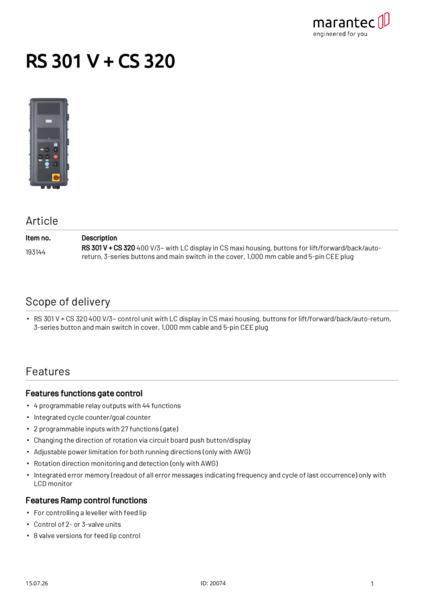

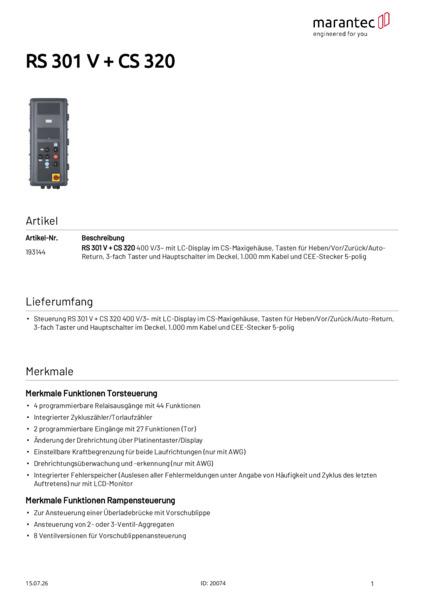

RS 301 V + CS320 for dock levellers with feed lip

400 V/3~ with LC display in CS maxi housing, buttons for lift/forward/back/auto-return, 3-series buttons and main switch in the cover, 1,000 mm cable and 5-pin CEE plug.
SKU
193144
4062435001911
RS 301 V + CS320 for dock levellers with feed lip

Scope of delivery:

  • RS 301 V + CS 320 400 V/3~ control unit with LC display in CS maxi housing, buttons for lift/forward/back/auto-return, 3-series button and main switch in cover, 1,000 mm cable and 5-pin CEE plug

Door control – Functions:

  • 4 programmable relay outputs with 44 functions
  • Integrated cycle counter/goal counter
  • 2 programmable inputs with 27 functions (gate)
  • Changing the direction of rotation via platinum pushbutton/display
  • Adjustable force limit for both running directions (only with AWG)
  • Rotation direction monitoring and detection (only with AWG)
  • Integrated error memory (readout of all error messages indicating frequency and cycle of last occurrence) only with LCD monitor

Ramp control – Functions:

  • For controlling a leveller with feed lip
  • Control of 2- or 3-valve units
  • 8 Ventilversionen für Vorschublippenansteuerung
  • Start-up interlock after power failure
  • Rotary field test/phase failure detection
  • 1 programmable input with 4 functions (bridge)
  • Control of the gate sealing (shelter function)
  • Enabling/locking the automatic gate
  • Release/locking by external gate control
  • Auto Return

End position setting:

  • Via mechanical limit switches (MEC) and/or via absolute encoders (AWG)
  • Setting via platinum pushbutton or plug-in LCD monitor

Operation:

  • 3 direction keys
  • 3-fold push button gate control
  • Auto return button
  • Pluggable LC display with plain text display
  • 3-button navigation/status and diagnostic messages

Structure and connection:

  • Integrated main switch
  • Integrated fuses for the hydraulic power unit (standard: 4 A, on request 6.3 A)
  • Switchable transformer from 230 V/1~/3~ to 400 V/3~
  • Supply for external devices RS 300, CS 320
  • Short-circuit proof extra-low voltage
  • Connection of indoor and outdoor traffic lights
  • Connection of wheel wedge and start-up sensor
  • Connection of loading light or signal horn
  • Connection for locking the dock leveller
  • Connection for locking the gate system
  • Connection for elements of the safety circuit
  • Connection for closing edge protection (opto, 8.2 kOhm, pressure wave bar or leading light barrier) in CLOSE direction

Optional:

  • Forced lowering key
  • Control in steel cabinet
RS 301 V + CS 320
Product descriptive data
Housing type CS-Maxi
Protection class IP65
Display type LCD
Main switch in the control cover Main switch 4-pole
Pushbutton in the control cover Electronic 3-series pushbutton CS Lift Before Back Auto Return
Emergency stop in the control cover Without emergency stop
Function switch in the control cover Without function switch
Power plug CEE plug 5-poles. red
Application area
Temperature (min./max.) [°C] -10/45
Performance data
Operating mode (control) Deadman
Electrical data
On-site supply 180-440 V/3~/N/PE/50/60 Hz
Current consumption per valve (max.) [A] 0.8
Mains frequency [Hz] 50/60
Control voltage [V] 24 V-DC
Switching current gate control (max.) [A] 8
Switching current ramp control (max.) [A] 6.3
Load capacity power gate control (max.) [kW] 2.2
Load capacity Ramp control power (max.) [kW] 2.2
Dimensions and weights
Dimensions (WxHxD) [mm] 260x550x245
