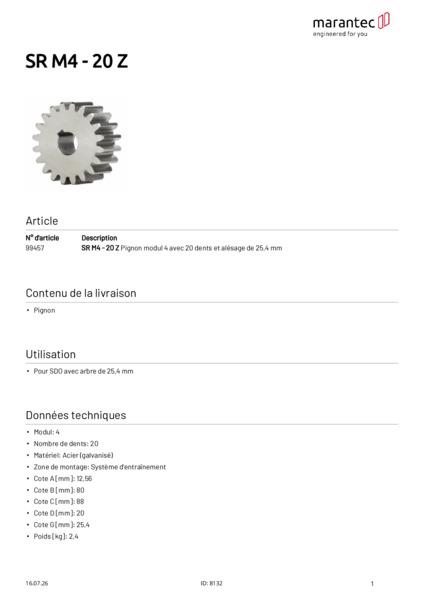

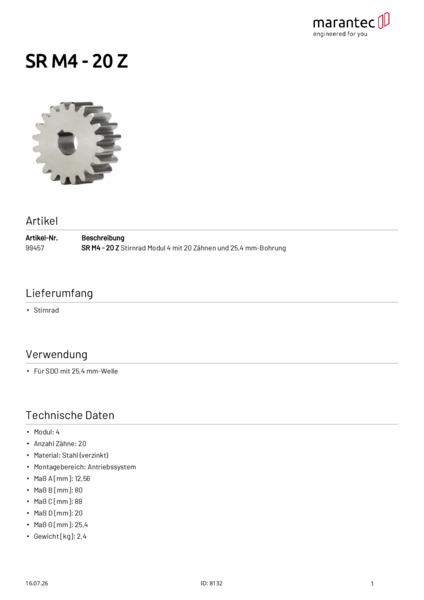

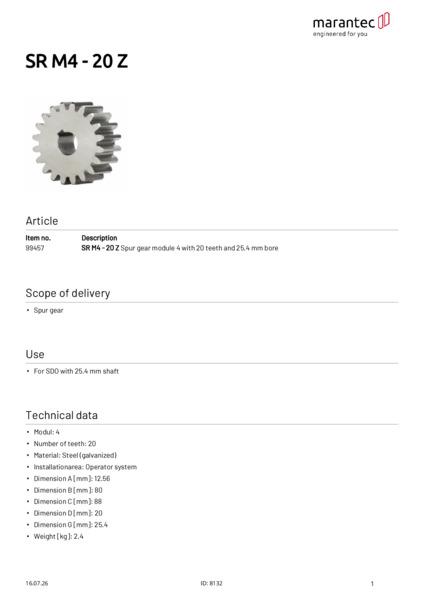

SR M4 - 20 Z spur gear module 4 with 20 teeth and 25.4 mm bore
Spur gear module 4 with 20 teeth and 25.4 mm bore For SDO with 25.4 mm shaft
SKU
99457
4062434011829
Item is not available
Note
Product added to cart.
Loading...
SR M4 - 20 Z spur gear module 4 with 20 teeth and 25.4 mm bore
Scope of delivery:
- Stirnrad
SR M4 - 20 Z
Product descriptive data
Material
Steel (galvanized)
Modul
4
Installation type
Pluggable
Number of teeth
20
Application area
Installationarea
Operator system
Dimensions and weights
Weight [kg]
2.4
Dimension A [mm]
12.56
Dimension B [mm]
80
Dimension C [mm]
88
Dimension D [mm]
20
Dimension G [mm]
25.4
