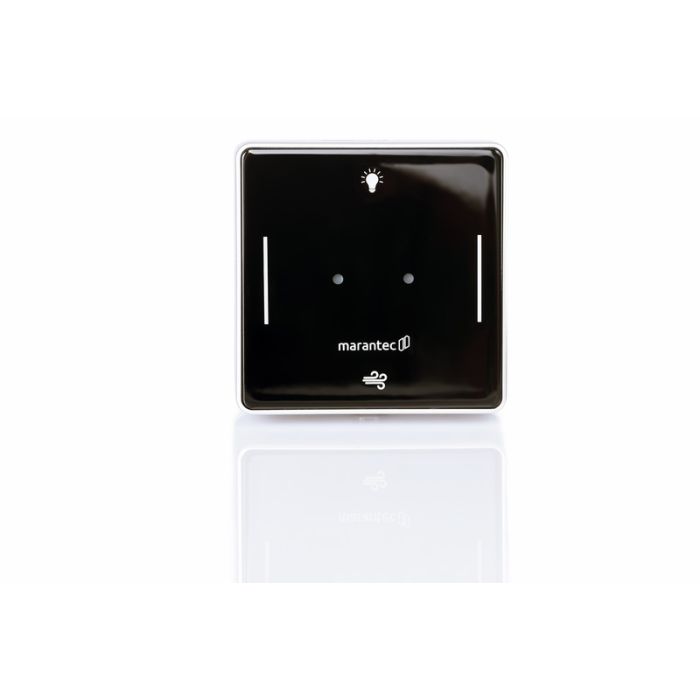

Digital 540 4-channel radio indoor push-button, light ON/OFF, ventilation function, 868 MHz bi.linked

4-Kanal Funk-Innendrucktaster mit Licht- und Lüftungstaste, unidirektional, 868 MHz bi.linked. For all Marantec controllers and third-party products (in conjunction with corresponding bi.linked receiver).
SKU
190612
4062434022368
Digital 540 4-channel radio indoor push-button, light ON/OFF, ventilation function, 868 MHz bi.linked

Scope of delivery:

  • Radio interior push button with 2 batteries
  • Installation material

Features:

  • 2 function keys for free assignment
  • 1 key for switching the operator lighting ON/OFF
  • 1 key for operating the ventilation position
  • Signaling by red LED
  • High security through 128-bit AES-encrypted radio transmission and constantly changing radio code (rolling code method)
Digital 540
Product descriptive data
Antenna Integrated
Number of freely programmable keys 2
Number of pre-programmed keys 2
Inputs

2 inputs for push buttons
Color RAL 9005 RAL 9006
Radio frequency 868 MHz
Radio technology bi.linked
Channels 4
Communication direction Unidirectional
Protection class IP20
Sensoren Without
Push button type Push button
Radio coding Marantec
Application area
Temperature (min./max.) [°C] -20/60
Electrical data
Battery count 1
battery type CR2032, 3 V
Dimensions and weights
Dimensions (WxHxD) [mm] 82x83x26
