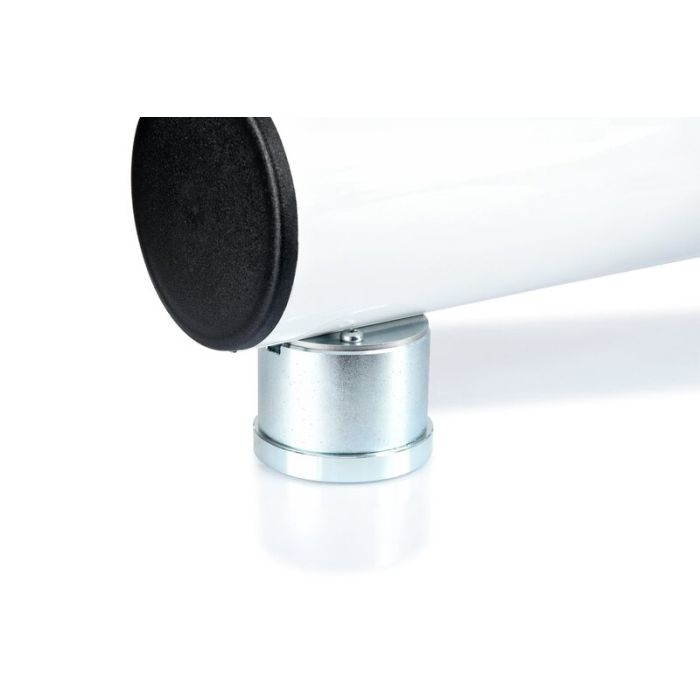

Lock 730 magnetic lock for 90 mm barrier beams

24 V-DC magnetic lock for holding down the barrier arm. For boom arm ASTL4(J)/5(J)/6(J)/8. Only in conjunction with forked support post with receptacle for magnetic locking.
SKU
183328
EAN Code
4062434014691

Prices are only visible after login.

Lock 730 magnetic lock for 90 mm barrier beams

Scope of delivery:

  • Electromagnet
  • Installation plate
  • Anchor plate
  • Connection cable 4x0,75 mm², 10.000 mm
  • Installation material
Lock 730
Product descriptive data
Connection type Conventional
Protection class IP65
Performance data
Holding force (max.) [N] 1,400
Electrical data
Operating voltage [V] 24 V-DC
Power consumption [VA/W/kW] 8.5 W
Rated current [A] 0.35
