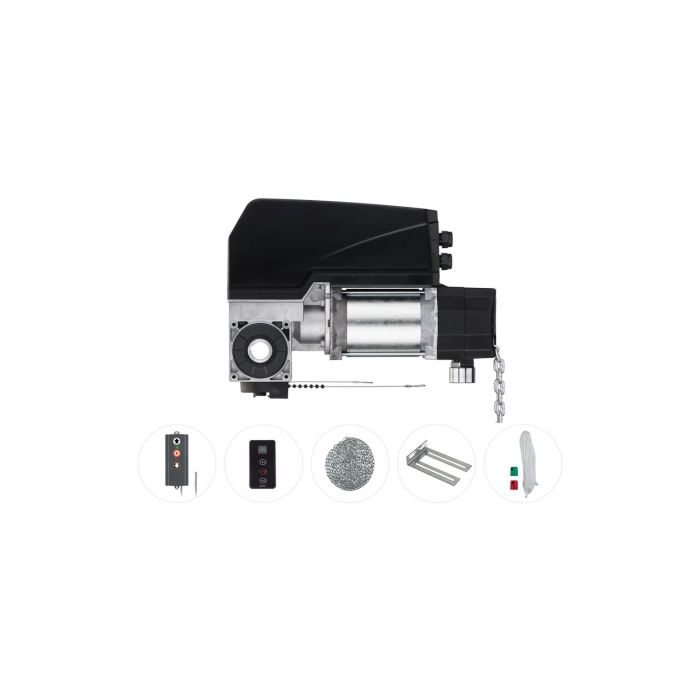

VTA 14-61 E-KE 100-240 V/1~, max. 18 m², 25 Nm, 24 min-1 – CS-I 15 – Command 108 (starter set)
Set for spring balanced sectional doors up to 18 m², 24 V-DC motor, 25 Nm, 24 min-1, 25,4 mm, with integrated control unit.
SKU
179881
4062435002895
Note
Product added to cart.
Loading...
VTA 14-61 E-KE 100-240 V/1~, max. 18 m², 25 Nm, 24 min-1 – CS-I 15 – Command 108 (starter set)
Scope of delivery:
- Operator VTA 14-61 E-KE 230V/1PH AWG 25.4 mm with 1,000 mm reel chain and integrated control unit
- Hauling rope, 6.000 mm with red and green rope bell
- Reel chain, 4.000 mm with 2 chain locks
- Torque support 1 L-shape
- 3-fold push button CS-I 15, 7.000 mm
- Command 108 hand programmer, 3,000 mm
- Accessories bag VTA
Operator – Features:
- Integrated control
- Emergency operation via emergency hand crank (KU), emergency hand chain (KE), emergency release (E), emergency release with spring return (E-FR) or maintenance release with emergency hand chain (E-KE)
- Power limitation in direction OPEN and CLOSE
- No active closing edge safety device necessary for gates up to 14 m²
- The soft-start and soft-stop technology ensures a longer service life of the door system, as the door mechanism is subjected to less stress. This reduces repair costs.
- Simple parameterization of variable speeds
- Smooth running without the use of frequency converters
- Absolute encoder technology
Control – Functions:
Control – End position setting:
Control – Operation:
Control – Structure and connection:
VTA 14-61 E-KE
Product descriptive data
Connection type
Conventional
Brake control
Without brake
Continuous sound pressure level (max.) [dB(A)]
70
End position system
Absolute encoder
Safety catch integrated
No
Gearbox
Rolled worm shaft Double bearing worm shaft
Emergency operation
Maintenance release with emergency hand chain (E-KE)
Protection class
IP54
Protection class
I
Control type
Integrated
Overload protection
Shutdown via current consumption
Brake type
Without brake
Application area
Area of sectional doors with normal fitting (max.) [m²]
18
Area of sectional doors with vertical fitting (max.) [m²]
10
Area of sectional doors with higher guided fitting (max.) [m²]
18
Weight of sectional doors with normal fitting (max.) [kg]
234
Weight of sectional doors with vertical fitting (max.) [kg]
130
Weight of sectional doors with higher guided fitting (max.) [kg]
234
Diameter rope drum sectional door with normal fitting (max.) [mm]
160
Diameter of cable drum sectional door with higher guided fitting (max.) [mm]
200
Diameter rope drum sectional door with vertical fitting (max.) [mm]
220
Temperature (min./max.) [°C]
-20/40
Performance data
Output torque [Nm]
25
Output speed [1/min]
24
Holding torque (min.) [Nm]
400
Output revolutions (max.)**
13
Cycles per hour (max.)*
24
Motor power [kW]
0.16
Electrical data
On-site fuse protection (mains operation 230 V /1~) [A]
16
Operating voltage [V]
100-240 V/1~
Operating voltage type
Alternating current
Nominal frequency [Hz]
50/60
Control voltage [V]
24 V-DC
Supply external devices
100 mA
Dimensions and weights
Dimension A [mm]
268
Dimension A1 [mm]
45.5
Dimension B [mm]
104
Dimension C [mm]
398
Dimension C1 [mm]
45.5
Shaft support [mm]
25.4
