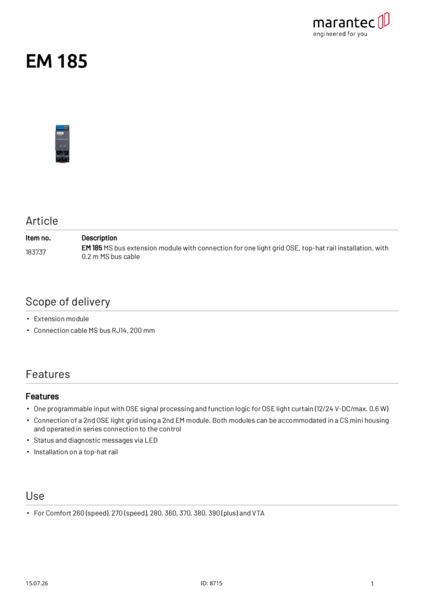

EM 185 extension module for an OSE light grid

MS bus extension module with connection for one light grid OSE, top-hat rail installation, with 0.2 m MS bus cable. For Comfort 260 (speed), 270 (speed), 280, 360, 370, 380, 390 (plus) and VTA.
SKU
183737
4062434014653
EM 185 extension module for an OSE light grid

Scope of delivery:

  • Extension module
  • Connection cable MS bus RJ14, 200 mm

Features:

  • One programmable input with OSE signal processing and function logic for OSE light curtain (12/24 V-DC/max. 0.6 W)
  • Connection of a 2nd OSE light grid using a 2nd EM module. Both modules can be accommodated in a CS mini housing and operated in series connection to the controller
  • Status and diagnostic messages via LED
  • Mounting on a top-hat rail
EM 185
Product descriptive data
Connection type Pluggable
Inputs

1 programmable input for light barriers with 2-wire cabling

1 programmable input with OSE signal processing and function logic for OSE light curtains (12/24 V-DC/max. 0.6 W)
Interfaces MS bus (RJ14 connector) 2-wire OSE
Protection class IP00
Application area
Temperature (min./max.) [°C] -20/60
Electrical data
Operating voltage [V] 24 V-DC
Operating voltage type Direct current
Dimensions and weights
Width (pitch units) 2.5
Dimensions (WxHxD) [mm] 45x126x48
Marantec Marienfeld GmbH & Co. KG
Remser Brook 11
33428 Marienfeld
