EM 185 extension module for an OSE light grid, in CS mini housing

MS bus extension module with connection for one light grid OSE, in CS mini housing, with 9.5 m MS bus cable. For Comfort 260 (speed), 270 (speed), 280, 360, 370, 380, 390 (plus) and VTA.
SKU
184081
4062434014622
EM 185 extension module for an OSE light grid, in CS mini housing

Scope of delivery:

  • Extension module pre-assembled in CS mini housing
  • Connection cable MS-Bus RJ14, 9.500 mm
  • Installation material

Features:

  • One programmable input with OSE signal processing and function logic for OSE light curtain (12/24 V-DC/max. 0.6 W)
  • Connection of a 2nd OSE light grid using a 2nd EM module. Both modules can be accommodated in a CS mini housing and operated in series connection to the controller
  • Status and diagnostic messages via LED
  • Mounting on a top-hat rail
  • Weather resistant housing

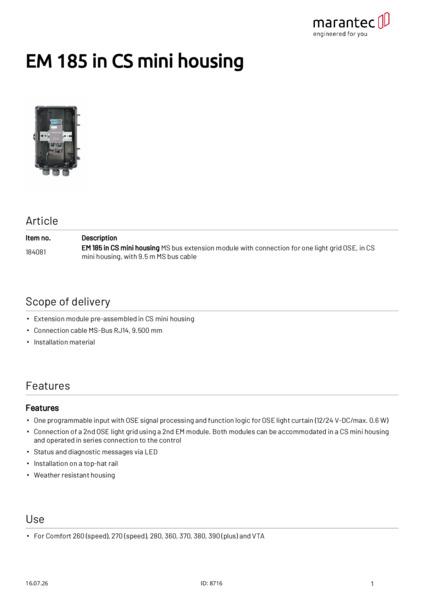

EM 185 in CS mini housing
Product descriptive data
Connection type Pluggable
Inputs

1 programmable input for light barriers with 2-wire cabling

1 programmable input with OSE signal processing and function logic for OSE light curtains (12/24 V-DC/max. 0.6 W)
Interfaces MS bus (RJ14 connector) 2-wire OSE
Protection class IP65
Application area
Temperature (min./max.) [°C] -20/60
Electrical data
Operating voltage [V] 24 V-DC
Operating voltage type Direct current
Dimensions and weights
Dimensions (WxHxD) [mm] 165x220x105
