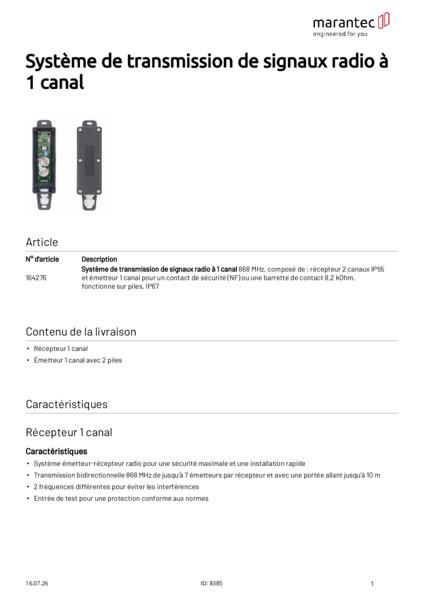

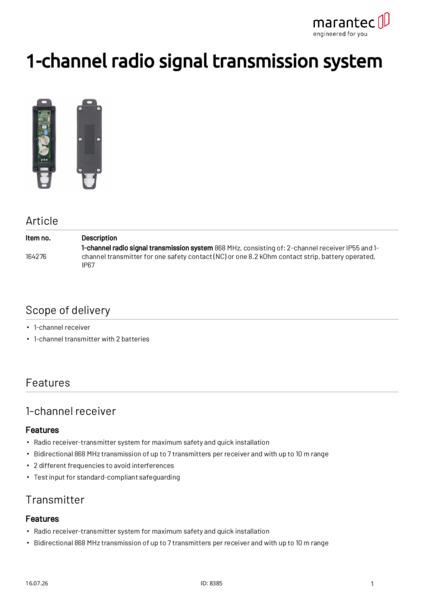

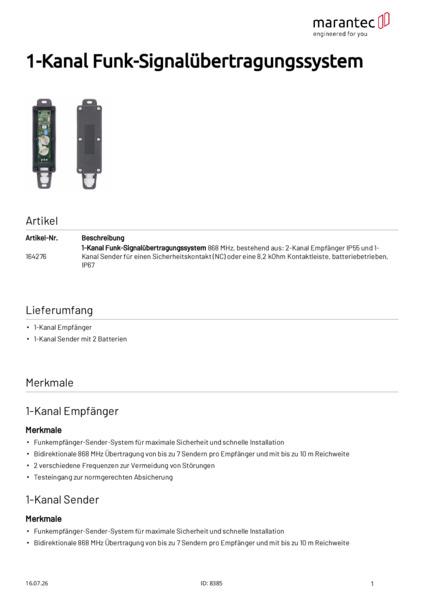

1-channel radio signal transmission system

Main image Click to view image in fullscreen

Technical data

Betriebsanleitung-WIRELESSBAND-1R-DE-2021-12
Filetype: PDF

Language: DE

Published at: Dec 10, 2021

Betriebsanleitung-WIRELESSBAND-1R-EN-2022-11
Filetype: PDF

Language: EN

Published at: Nov 9, 2022

Betriebsanleitung-WIRELESSBAND-1R-ES-2022-11
Filetype: PDF

Language: ES

Published at: Nov 9, 2022

Betriebsanleitung-WIRELESSBAND-1R-FR-2022-11
Filetype: PDF

Language: FR

Published at: Nov 9, 2022

868 MHz, consisting of: 2-channel receiver IP55 and 1-channel transmitter for one safety contact (NC) or one 8.2 kOhm contact strip, battery operated, IP67. For all Marantec controls and third-party brands. With Comfort 260 (speed), 270 (speed), 280, 360, 370, 380, 390 (plus) and VTA no testing of the receiver is possible.

SKU

164276

EAN Code

4062434014981

Quantity

PAU

Quantity

1-channel radio signal transmission system

Scope of delivery:

1-channel receiver
1-channel transmitter with 2 batteries

1-channel receiver

Product descriptive data

Connection type Conventional

Number of contacts 1

Outputs

1 potential-free relay contact (NC)

Inputs

1 Test input

Radio frequency 868 MHz

Channels 1

Contact type 1 NC

Protection class IP55

Safety category 2

Application area

Temperature (min./max.) [°C] -20/55

Performance data

Range [m] 10

Electrical data

Operating voltage [V] 12 V-AC 12 V-DC 24 V-AC 24 V-DC

Power consumption [VA/W/kW] 1.2 W

Contact load (max.)

24 V/0.5 A

Dimensions and weights

Weight [kg] 0.13

Dimensions (WxHxD) [mm] 127x81x46
