Radio transmission system: 2-channel plug-in receiver CS 320, 1-channel transmitter

Main image Click to view image in fullscreen

Technical data

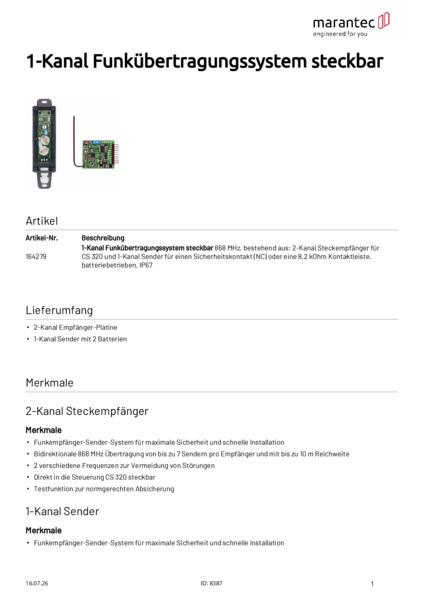

Betriebsanleitung-WIRELESSBAND-1R-DE-2021-12
Filetype: PDF

Language: DE

Published at: Dec 10, 2021

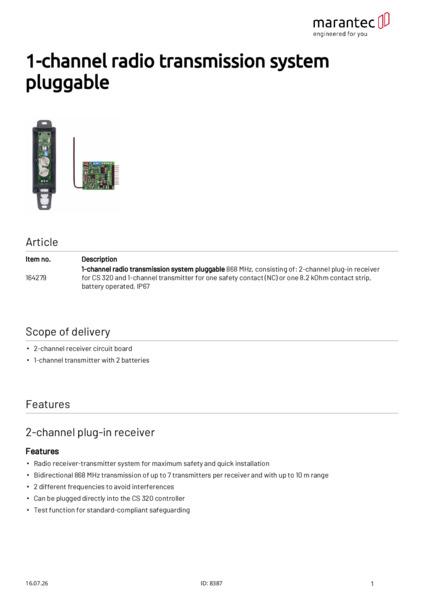

Betriebsanleitung-WIRELESSBAND-1R-EN-2022-11
Filetype: PDF

Language: EN

Published at: Nov 9, 2022

Betriebsanleitung-WIRELESSBAND-1R-ES-2022-11
Filetype: PDF

Language: ES

Published at: Nov 9, 2022

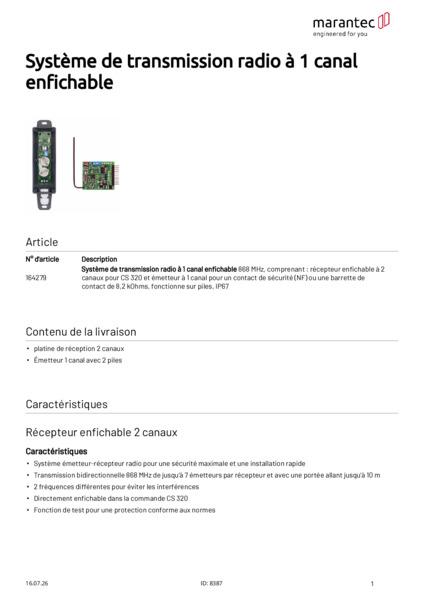

Betriebsanleitung-WIRELESSBAND-1R-FR-2022-11
Filetype: PDF

Language: FR

Published at: Nov 9, 2022

868 MHz, consisting of: 2-channel plug-in receiver for CS 320 and 1-channel transmitter for one safety contact (NC) or one 8.2 kOhm contact strip, battery operated, IP67. For CS 320.

SKU

164279

EAN Code

4062434014974

Quantity

PAU

Quantity

Radio transmission system: 2-channel plug-in receiver CS 320, 1-channel transmitter

Scope of delivery:

2-channel receiver circuit board
1-channel transmitter with 2 batteries

2-channel plug-in receiver

Product descriptive data

Connection type Pluggable

Radio frequency 868 MHz

Channels 2

Protection class IP00

Safety category 2

Application area

Temperature (min./max.) [°C] -20/55

Performance data

Range [m] 10

Electrical data

Operating voltage [V] 5 V-DC

Dimensions and weights

Dimensions (WxHxD) [mm] 35x40x12
