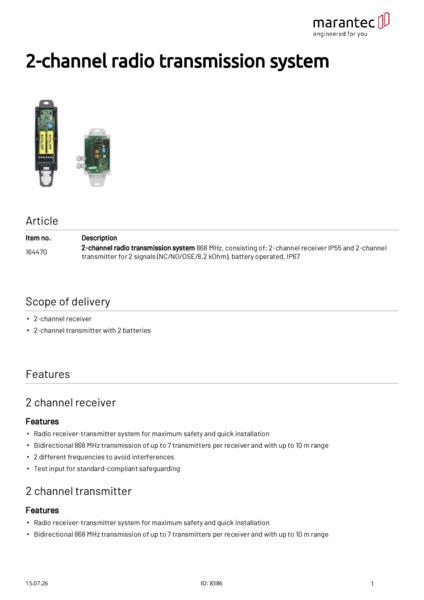

Radio transmission system: 2-channel universal receiver, 2-channel transmitter

Main image Click to view image in fullscreen

Technical data

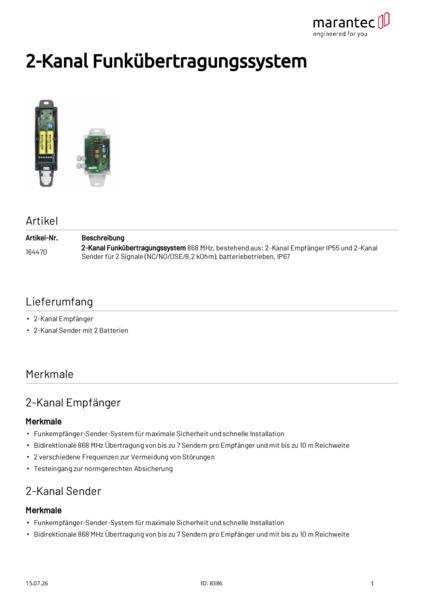

Betriebsanleitung-WIRELESSBAND-1-OSE-DE-2020-12
Filetype: PDF

Language: DE

Published at: Dec 9, 2020

Betriebsanleitung-WIRELESSBAND-1-OSE-EN-2020-11
Filetype: PDF

Language: EN

Published at: Nov 26, 2020

Betriebsanleitung-WIRELESSBAND-1-OSE-ES-2020-11
Filetype: PDF

Language: ES

Published at: Nov 26, 2020

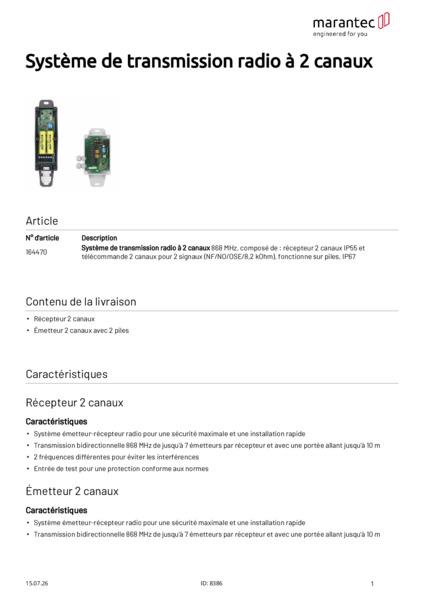

Betriebsanleitung-WIRELESSBAND-1-OSE-FR-2020-12
Filetype: PDF

Language: FR

Published at: Dec 9, 2020

868 MHz, consisting of: 2-channel receiver IP55 and 2-channel transmitter for 2 signals (NC/NO/OSE/8.2 kOhm), battery operated, IP67. For all Marantec controls and third-party brands. With Comfort 260 (speed), 270 (speed), 280, 360, 370, 380, 390 (plus) and VTA no testing of the receiver is possible.

SKU

164470

EAN Code

4062434014950

Quantity

PAU

Quantity

Radio transmission system: 2-channel universal receiver, 2-channel transmitter

Scope of delivery:

2-channel receiver
2-channel transmitter with 2 batteries

2 channel receiver

Product descriptive data

Connection type Conventional

Number of contacts 2

Outputs

2 potential-free relay contacts (NC)

Inputs

2 test inputs

Radio frequency 868 MHz

Channels 2

Contact type 2 NC

Protection class IP55

Safety category 2

Application area

Temperature (min./max.) [°C] -20/55

Performance data

Range [m] 10

Electrical data

Operating voltage [V] 12 V-AC 12 V-DC 24 V-AC 24 V-DC

Power consumption [VA/W/kW] 1.2 W

Contact load (max.)

24 V/0.5 A

Dimensions and weights

Weight [kg] 0.13

Dimensions (WxHxD) [mm] 121x81x46
