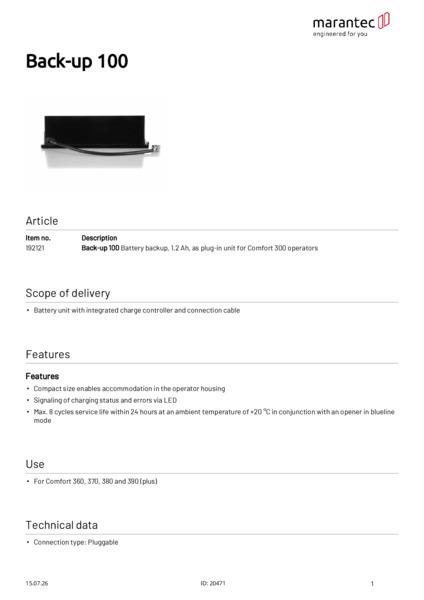

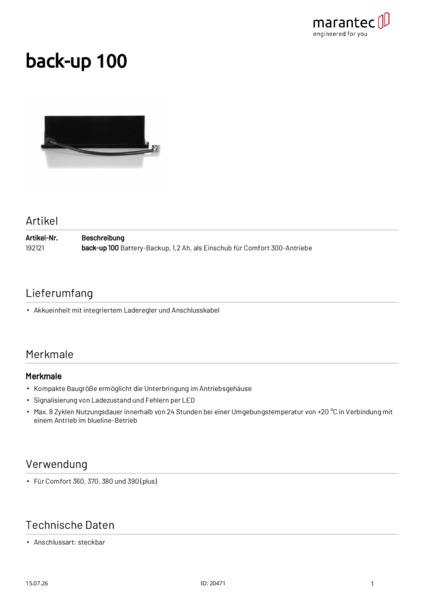

Back-up 100 Battery-Backup, 1.2 Ah, as plug-in unit for Comfort 300 series

Battery backup, 1.2 Ah, as plug-in unit for Comfort 300 operators. For Comfort 360, 370, 380 and 390 (plus).
SKU
192121
4062434021835
101312
Back-up 100 Battery-Backup, 1.2 Ah, as plug-in unit for Comfort 300 series

Scope of delivery:

  • Battery unit with integrated charge controller and connection cable

Features:

  • Compact size enables accommodation in the operator housing
  • Signaling of charging status and errors via LED
  • Max. 8 cycles service life within 24 hours at an ambient temperature of +20 °C in conjunction with an opener in blueline mode
Back-up 100
Product descriptive data
Connection type Pluggable
Outputs

1 common entrance and exit for loading and supply
Inputs

1 common entrance and exit for loading and supply
Protection class IP20
Application area
Temperature (min./max.) [°C] -15/45
Electrical data
Battery capacity [Ah] 1.2
Operating voltage [V] 24 V-DC
Operating voltage type Direct current
Dimensions and weights
Dimensions (WxHxD) [mm] 70x80x250
