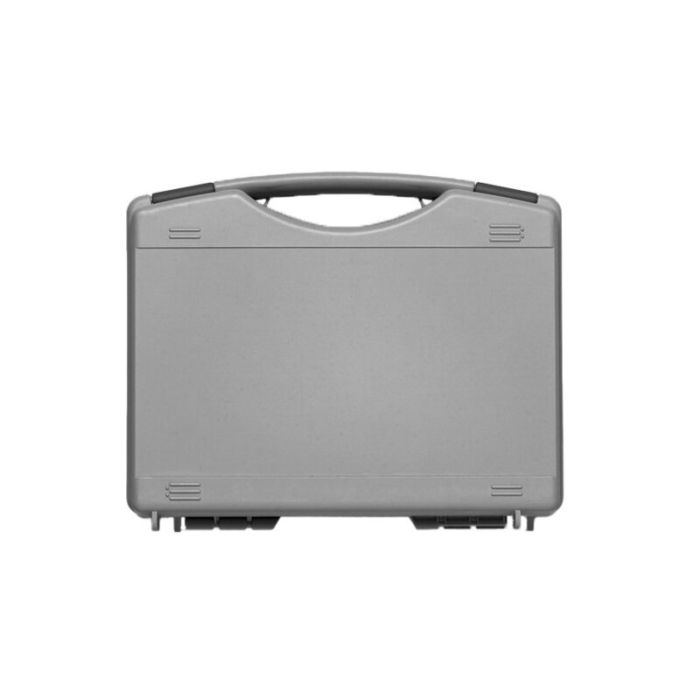

Back-up 700 Battery-Backup, 7.2 Ah, in case, IP20

Battery backup, 7.2 Ah, in IP20 housing. For Comfort 260 (speed), 270 (speed), 280, 360, 370, 380, 390 (plus), Control x.52 and x.82.
SKU
87786
EAN Code
4062434007204

Prices are only visible after login.

Back-up 700 Battery-Backup, 7.2 Ah, in case, IP20

Scope of delivery:

  • Battery unit with integrated charge controller
  • Connection cable, 1,000 mm
  • Wall bracket with mounting hardware

Features:

  • Signaling of charging status and errors via LED
  • Max. 70 cycles service life within 7 days at an ambient temperature of +20 °C in conjunction with an opener in blueline mode
  • Max. 30 cycles period of use within 3 days at an ambient temperature of +20 °C in conjunction with an operator or a control system with power-saving mode
Back-up 700
Product descriptive data
Connection type Pluggable
Outputs

1 common entrance and exit for loading and supply
Inputs

1 common entrance and exit for loading and supply
Protection class IP20
Application area
Temperature (min./max.) [°C] -15/45
Electrical data
Battery capacity [Ah] 7.2
Operating voltage [V] 24 V-DC
Operating voltage type Direct current
Dimensions and weights
Dimensions (WxHxD) [mm] 230x280x80
