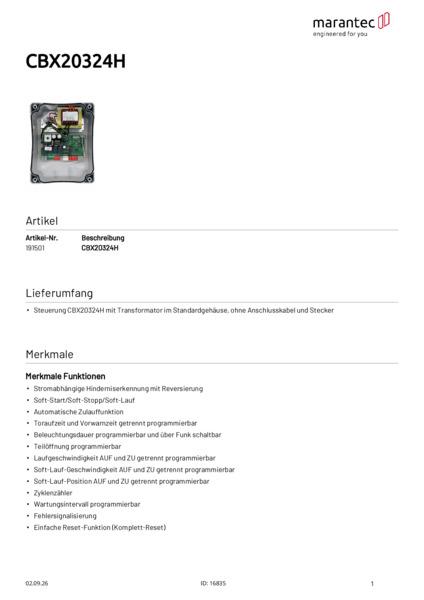

CBX20324H control unit with transformer in standard housing 868 MHz bi.linked
Für Comfort ST, RA, RE+ und UN.
SKU
191501
EAN Code
4062434019573
Predecessor
178461
Prices are only visible after login.
CBX20324H control unit with transformer in standard housing 868 MHz bi.linked
Scope of delivery:
- CBX20324H controller with transformer in a standard housing, without connection cable or plug
Functions:
- Current-dependent obstacle detection with reversal
- Soft start/soft stop/soft run
- Automatic feed function
- Gate open time and prewarning time separately programmable
- Lighting duration programmable and switchable by radio
- Partial opening programmable
- Running speed OPEN and CLOSE separately programmable
- Soft run speed OPEN and CLOSE separately programmable
- Soft run position OPEN and CLOSE separately programmable
- Cycle counter
- Maintenance interval programmable
- Error signaling
- Simple reset function (complete reset)
Operation:
- Same programming logic for all controls - CBX102B, CBX10224 and CBX20224
- 2 menus: simple and advanced - for easy programming, but customizable installation
- Programming and status indication via LED display
Structure and connection:
- Integrated radio receiver bi.linked 868 MHz
- Connection (conventional) for push button
- Connection (conventional) for 4-wire photoelectric sensor OPEN and CLOSED
- Connection (conventional) for holding circuit
- Connection (conventional) for 8.2 kOhm contact strip
- Connection (conventional) for 24 V-DC signal light
- Connection (conventional) for 12 V-AC electric lock
- Connection for battery backup
- Output 24 V-DC, max. 250 mA
CBX20324H
Product descriptive data
Radio frequency
868 MHz
Radio technology
bi.linked
Application area
Temperature (min./max.) [°C]
-20/55
Electrical data
On-site supply
230 V/1~/50 Hz 230 V/1~/60 Hz
Operating voltage [V]
24 V-DC
Load capacity Power (max.) [kW]
0.28
Motor voltage [V]
24 V-DC
Control voltage [V]
24 V-DC
