Ceiling pull switches with snap action

with snap action. For all Marantec controls and third-party products.
SKU
141634
4062435001119
Ceiling pull switches with snap action

Scope of delivery:

  • Ceiling pull switch

Features:

  • Operation by pulling the pull rope
Ceiling pull switch
Product descriptive data
Connection type Conventional
Number of contacts 2
Contact type 1 NO + 1 NC
Material Aluminum die casting Steel (galvanized)
Protection class IP65
Switching system Slow action
Application area
Temperature (min./max.) [°C] -20/80
Electrical data
Contact load (max.)

400 V-AC/6 A
Dimensions and weights
Weight [kg] 0.19
Rope diameter (max.) [mm] 15
Dimensions (WxHxD) [mm] 40x116x27

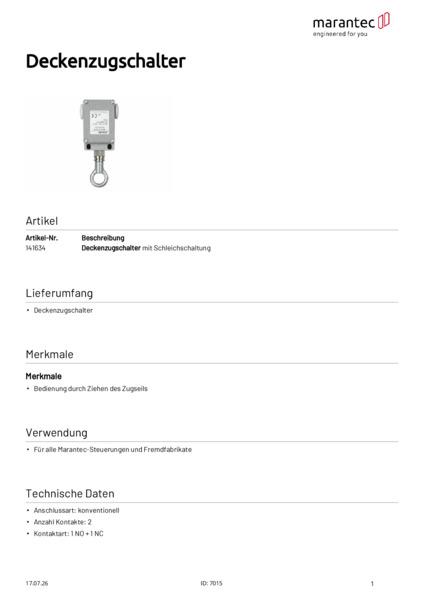

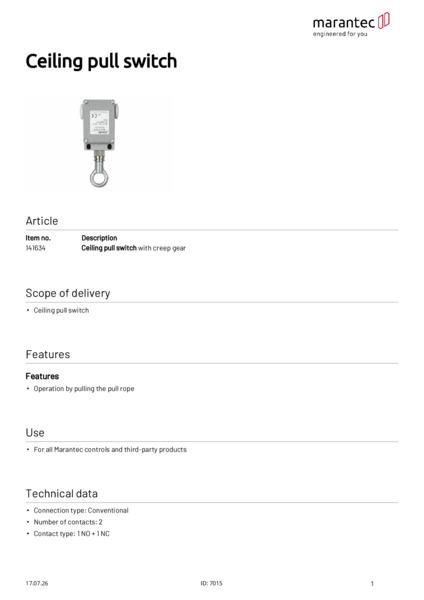

Operating Manuals
Download PDF Betriebsanleitung-EM-41-Z-ES-41-Z-DE-EN-FR-IT-PT-2023-06

Filetype: PDF

Language: DE, EN, FR, IT, PT


Published at: Jun 13, 2023 		Preview
