Ceiling pull switch with slow action and 3.5 m pull rope

with slow action and 3.5 m pull rope. For all Marantec controls and third-party products.
SKU
151050
4062434009017
Ceiling pull switch with slow action and 3.5 m pull rope

Scope of delivery:

  • Ceiling pull switch with pull rope, 3.500 mm
  • Wall bracket
  • Installation material

Features:

  • Operation by pulling the pull rope
Ceiling pull switch
Product descriptive data
Connection type Conventional
Number of contacts 2
Contact type 1 NO + 1 NC
Material Aluminum die casting Steel (galvanized)
Protection class IP65
Switching system Snap action
Application area
Temperature (min./max.) [°C] -20/80
Electrical data
Contact load (max.)

400 V-AC/6 A
Dimensions and weights
Weight [kg] 0.166
Rope diameter (max.) [mm] 15
Dimensions (WxHxD) [mm] 40x116x27
Technical data

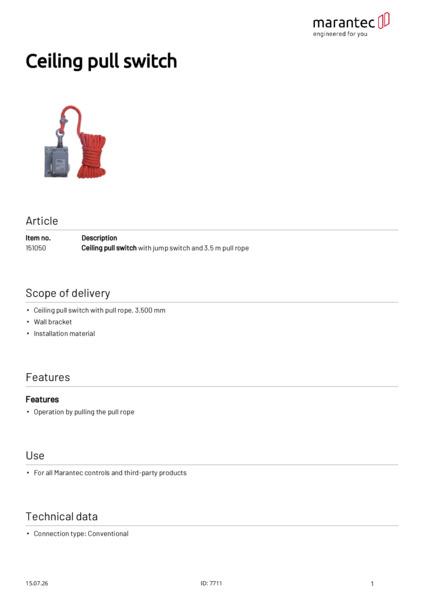

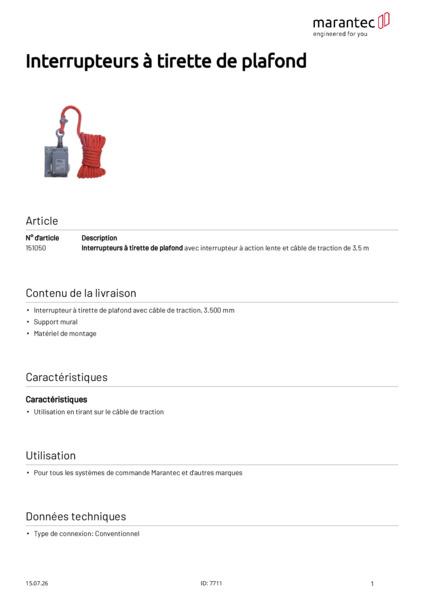

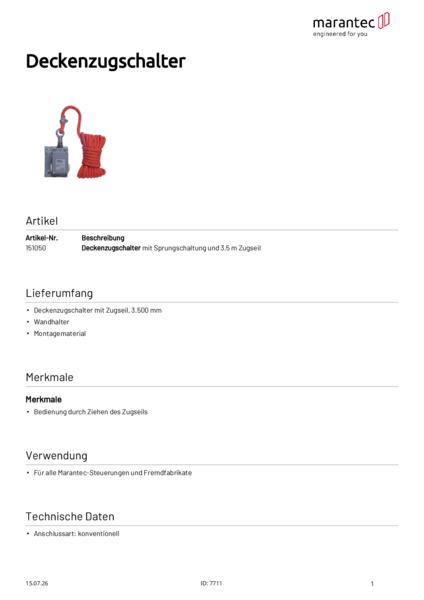

Download PDF Betriebsanleitung-EM-41-Z-ES-41-Z-DE-EN-FR-IT-PT-2023-06

Filetype: PDF

Language: DE, EN, FR, IT, PT


Published at: Jun 13, 2023 		Preview
