Comfort 390 plus garage door opener

Name: Comfort 390 plus garage door opener
SKU: 167477
Availability: InStock

Set for garage doors up to 240 kg: 24 V-DC motor, 1.200 N, 16 cm/s.

SKU

167477

EAN Code

4062434012673

Prices are only visible after login.

Comfort 390 plus garage door opener

Scope of delivery:

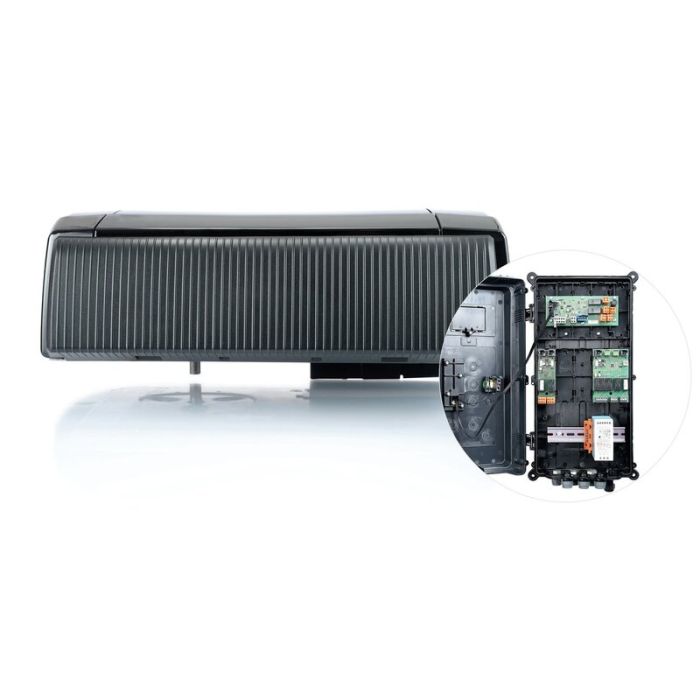

Motor unit with integrated control
External connection housing with 2 relays, track control and 24 V-DC switching power supply unit
Universal installation set for up-and-over and sectional doors
MS-Bus connection cable, 9,500 mm
Mains connection cable, 9,500 mm
Mains connection cable with Schuko plug type F, 1,200 mm

Operator – Features:

External connection housing with connections for wicket door, closing edge safety device, lighting, signal lights, lane control and with relay
Operating keys and emergency stop push button integrated in housing cover
Top-hat rail with pre-mounted power supply unit
Supply of accessories with 230 V-AC/6 A and 24 V-DC/2.5 A
DC motor: soft start and stop are gentle on the door, separately adjustable opening and closing speeds enable fast opening and standard-compliant closing
Integrated control with illuminated LC display and easy programming
Powerful DC gearmotor with high self-locking for gates up to 6.0 m wide and 240 kg weight
Battery backup can be integrated in the housing

Control – Functions:

Power-saving technology
Soft start/soft stop/soft run
Electronic anti-deferral device
Blocking protection
Runtime limit
Reversal of direction of rotation programmable
Backjump (relief of the closing edge)
Automatic feed function (can only be used in conjunction with a light barrier)
Intermediate position OPEN and CLOSED separately programmable
Gate travel speed OPEN and CLOSE separately programmable
Soft run position OPEN and CLOSE separately programmable
Soft run speed OPEN and CLOSE separately programmable
Frame function (blanking of frame light barriers)
Programmable impulse input and output
Cycle counter
Maintenance interval programmable
Error signaling with error memory
Multi-level reset function (control, safety, radio, etc.)

Control – End position setting:

Electronic limit stop

Control – Operation:

Marantec EOS programming
Programming and status message via LC display
Programming and diagnostics possible via optional external handheld programmer
Programming and diagnostics possible via maveo pro by smartphone app

Control – Structure and connection:

Connection (conventional) for 8.2 kOhm contact strip or OSE opto-sensors
Connection (conventional) for signal light 230 V-AC
2 programmable relay contacts for e.g. end position messages
2 inputs for push buttons and 4 relay contacts for traffic lights for two-way traffic control
2 inputs for push buttons and 2 relay contacts for signal lights for special functions for two-way traffic control
Switching power supply 24 V-DC max. 2.5 A with 2 outputs
Connection (conventional) for push button, light barrier and holding circuit
Pluggable radio receiver
Connection (MS bus) for handheld programmer and expansion modules
Connection for battery backup

Comfort 390 plus

Product descriptive data

Connection type Pluggable

Continuous sound pressure level (max.) [dB(A)] 70

Illuminant Without

Protection class IP20

Protection class II

Overload protection Shutdown via current consumption

Application area

Width of double-walled sectional doors (max.) [m] 6

Width of single-wall sectional doors (max.) [m] 6

Width of tipping and canopy gates (max.) [m] 6

Width overhead doors (max.) [m] 6

Height of tilt and canopy gates (max.) [m] 2.25

Gate weight (max.) [kg] 240

Temperature (min./max.) [°C] -20/60

Performance data

Running speed (max.) [cm/s] 16

Push and pull force (max.) [N] 1,200

Cycles per hour (max.)* 18

Cycles per day (max.) 300

Electrical data

Operating voltage [V] 230 V/1~

Operating voltage type Alternating current

Power consumption [VA/W/kW] 0.25 kW

Power consumption in standby [VA/W/kW] 3.5 W

Motor voltage [V] 24 V-DC

Nominal frequency [Hz] 50/60

Rated current [A] 1.1

Control voltage [V] 24 V-DC

Dimensions and weights

Weight [kg] 5

Dimensions (WxHxD) [mm] 360x135x335

* The values given were determined for an even distribution of the cycles. A cycle consists of two movements (opening and closing) and has a deflection of 10 revolutions of the output shaft in each direction. At ambient temperatures between 40°C and 60°C, a reduction of the maximum cycles per hour by 50% must be taken into account.

** For vertically moving doors and roller shutters, a reduction of the specified pull force by a further 20% may be necessary. Possible reasons for this are, for example, additional seals, double-walled profiles or an unfavorable winding ratio where the door height exceeds the door width. In addition, it should be noted that the maximum torque only occurs after one to two revolutions when thick or high profiles are used.

*** Alternative limit switch ratios are available upon request.
