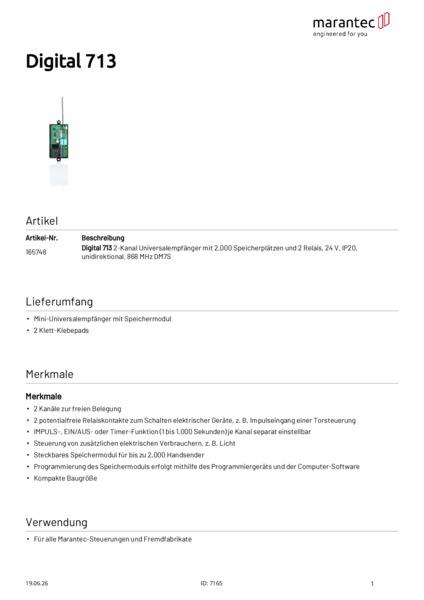

Digital 713 2-channel universal receiver, 2 relays, 24 V, 868 MHz DM7S

2-channel universal receiver with 2,000 memory locations and 2 relays, 24 V, IP20, unidirectional, 868 MHz DM7S For all Marantec controllers and third-party products
SKU
165748
4062434019856
Digital 713 2-channel universal receiver, 2 relays, 24 V, 868 MHz DM7S

Scope of delivery:

  • Mini-Universalempfänger mit Speichermodul
  • 2 Klett-Klebepads

Features:

  • 2 channels for free assignment
  • 2 potential-free relay contacts for switching electrical devices, e.g. pulse input of a gate control system
  • IMPULSE, ON/OFF or timer function (1 to 1,000 seconds) separately adjustable for each channel
  • Control of additional electrical consumers, e.g. light
  • Pluggable memory module for up to 2,000 handheld transmitters
  • Programming of the memory module is done with the help of the programmer and the computer software
  • Compact size
Digital 713
Product descriptive data
Connection type Conventional
Antenna Wire antenna
Number of memory locations 2,000
Outputs

2 potential-free relay contacts (CO)
Color Black
Radio frequency 868 MHz
Radio technology DM7S
Channels 2
Communication direction Unidirectional
Contact type 2 CO
Protection class IP20
Radio coding Marantec
Application area
Temperature (min./max.) [°C] -20/60
Electrical data
Operating voltage [V] 24 V-AC 24 V-DC
Operating voltage type Direct current
Contact load (max.)

24 V-DC/0.5 A
Rated current [A] 0.05
Dimensions and weights
Dimensions (WxHxD) [mm] 102x45x20
Marantec Marienfeld GmbH & Co. KG
Remser Brook 11
33428 Marienfeld



For questions to the manufacturer, please use this Contact form.

Magnetic base antenna with 5 m cable, conventional, 868 MHz
Digital 720 USB programmer for DM7S transmitters and receivers
Memory module DM7S receiver
