Comfort KUN3224 Set underfloor 2-leaf swing gates up to 3.5 m without encoder
-
Speditionsartikel
Prices are only visible after login.

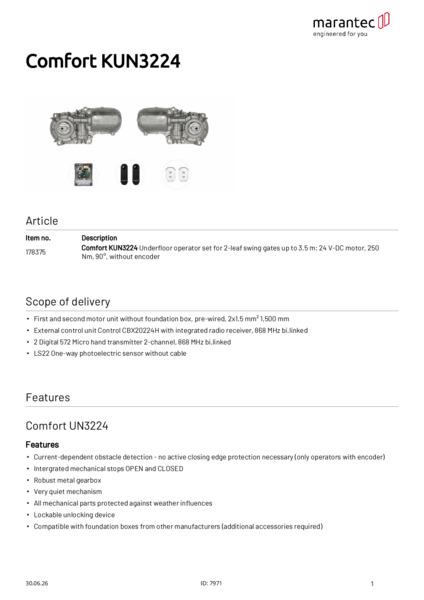

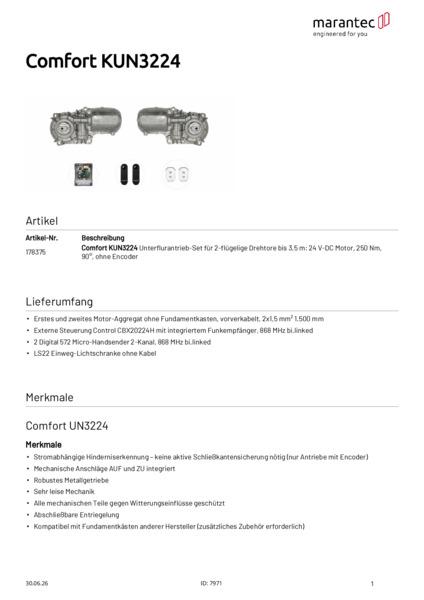

Scope of delivery:
- First and second motor unit without foundation box, pre-wired, 2x1.5 mm² 1,500 mm
- External control unit Control CBX20224H with integrated radio receiver, 868 MHz bi.linked
- 2 Digital 572 Micro hand transmitter 2-channel, 868 MHz bi.linked
- LS22 One-way photoelectric sensor without cable
Operator – Features:
- Current-dependent obstacle detection - no active closing edge protection necessary (only operators with encoder)
- Intergrated mechanical stops OPEN and CLOSED
- Robust metal gearbox
- Very quiet mechanism
- All mechanical parts protected against weather influences
- Lockable unlocking device
- Compatible with foundation boxes from other manufacturers (additional accessories required)
Control – Functions:
- Current-dependent obstacle detection with reversal
- Soft start/soft stop/soft run
- Automatic feed function
- Gate open time and prewarning time separately programmable
- Lighting duration programmable and switchable by radio
- Partial opening programmable
- Running speed OPEN and CLOSE separately programmable
- Soft run speed OPEN and CLOSE separately programmable
- Soft run position OPEN and CLOSE separately programmable
- Cycle counter
- Maintenance interval programmable
- Error signaling
- Simple reset function (complete reset)
Control – Operation:
- Same programming logic for all controls - CBX102B, CBX10224 and CBX20224
- 2 menus: simple and advanced - for easy programming, but customizable installation
- Programming and status indication via LED display
Control – Structure and connection:
- Battery backup can be integrated in the housing
- Integrated radio receiver bi.linked 868 MHz
- Connection (conventional) for push button
- Connection (conventional) for 4-wire photoelectric sensor OPEN and CLOSED
- Connection (conventional) for holding circuit
- Connection (conventional) for 8.2 kOhm contact strip
- Connection (conventional) for 24 V-DC signal light
- Connection (conventional) for 12 V-AC electric lock
- Connection for battery backup
- Output 24 V-DC, max. 250 mA
* The values given were determined for an even distribution of the cycles. A cycle consists of two movements (opening and closing) and has a deflection of 10 revolutions of the output shaft in each direction. At ambient temperatures between 40°C and 60°C, a reduction of the maximum cycles per hour by 50% must be taken into account.
** For vertically moving doors and roller shutters, a reduction of the specified pull force by a further 20% may be necessary. Possible reasons for this are, for example, additional seals, double-walled profiles or an unfavorable winding ratio where the door height exceeds the door width. In addition, it should be noted that the maximum torque only occurs after one to two revolutions when thick or high profiles are used.
*** Alternative limit switch ratios are available upon request.
* The values given were determined for an even distribution of the cycles. A cycle consists of two movements (opening and closing) and has a deflection of 10 revolutions of the output shaft in each direction. At ambient temperatures between 40°C and 60°C, a reduction of the maximum cycles per hour by 50% must be taken into account.
** For vertically moving doors and roller shutters, a reduction of the specified pull force by a further 20% may be necessary. Possible reasons for this are, for example, additional seals, double-walled profiles or an unfavorable winding ratio where the door height exceeds the door width. In addition, it should be noted that the maximum torque only occurs after one to two revolutions when thick or high profiles are used.
*** Alternative limit switch ratios are available upon request.
* The values given were determined for an even distribution of the cycles. A cycle consists of two movements (opening and closing) and has a deflection of 10 revolutions of the output shaft in each direction. At ambient temperatures between 40°C and 60°C, a reduction of the maximum cycles per hour by 50% must be taken into account.
** For vertically moving doors and roller shutters, a reduction of the specified pull force by a further 20% may be necessary. Possible reasons for this are, for example, additional seals, double-walled profiles or an unfavorable winding ratio where the door height exceeds the door width. In addition, it should be noted that the maximum torque only occurs after one to two revolutions when thick or high profiles are used.
*** Alternative limit switch ratios are available upon request.
