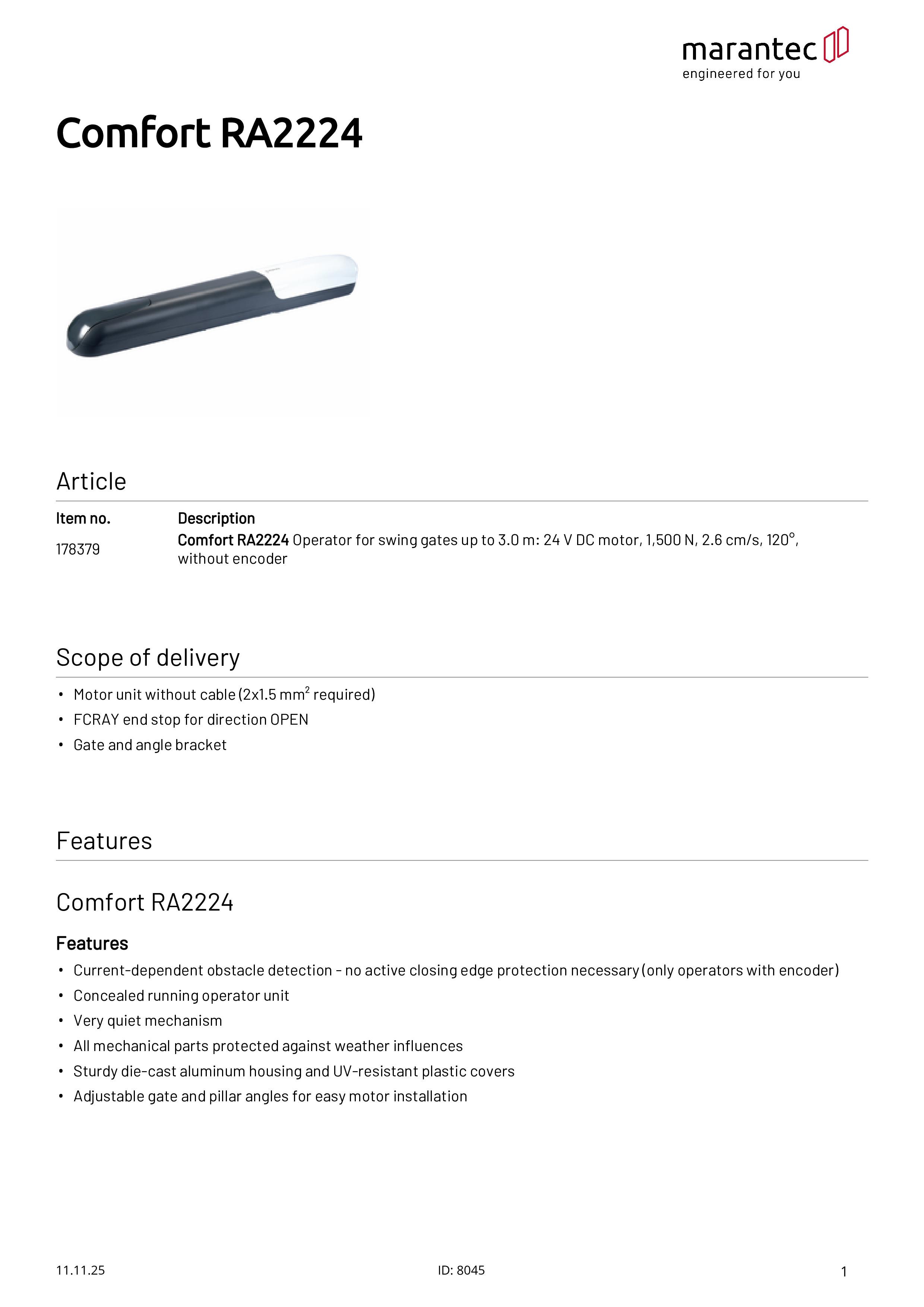

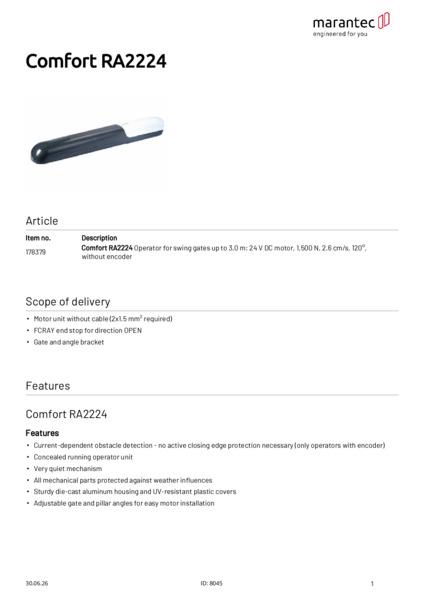

Comfort RA2224 drive for swing gates up to 3.0 m without encoder
Operator for swing gates up to 3.0 m: 24 V DC motor, 1,500 N, 2.6 cm/s, 120°, without encoder.
SKU
178379
4062434005965
Note
Product added to cart.
Loading...
Comfort RA2224 drive for swing gates up to 3.0 m without encoder
Scope of delivery:
- Motor unit without cable (2x1.5 mm² required)
- FCRAY end stop for direction OPEN
- Gate and angle bracket
Operator – Features:
- Stromabhängige Hinderniserkennung – keine aktive Schließkantensicherung nötig (nur Antriebe mit Encoder)
- Verdeckt laufende Antriebseinheit
- Sehr leise Mechanik
- Alle mechanischen Teile gegen Witterungseinflüsse geschützt
- Stabiles Aluminium-Druckguss-Gehäuse und UV-beständige Kunststoff-Abdeckungen
- Einstellbare Tor- und Pfeilerwinkel für einfache Motorenmontage
Comfort RA2224
Product descriptive data
Connection type
Conventional
Continuous sound pressure level (max.) [dB(A)]
70
Encoder
No
Protection class
IP44
Application area
Width gate wing (max.) [m]
3
Weight of gate leaf (max.) [kg]
500
Height gate wing (max.) [m]
2
Gradient (max.) [%]
0
E dimension (min./max.) [mm]
0/230
Temperature (min./max.) [°C]
-20/55
Performance data
Operating mode (duty cycle)
S2 - 8 min
Running speed (max.) [cm/s]
2.6
Opening angle (max.) [°]
120
Push and pull force (max.) [N]
1,500
Motor power [kW]
0.09
Electrical data
Operating voltage [V]
24 V-DC
Operating voltage type
Direct current
Motor voltage [V]
24 V-DC
Rated current [A]
3.5
Dimensions and weights
Weight [kg]
6
Movement stroke (max.) [mm]
415
Dimensions (WxHxD) [mm]
100x104x844
Dimensions (WxHxDmin/Tmax) [mm]
100x104x844/844
