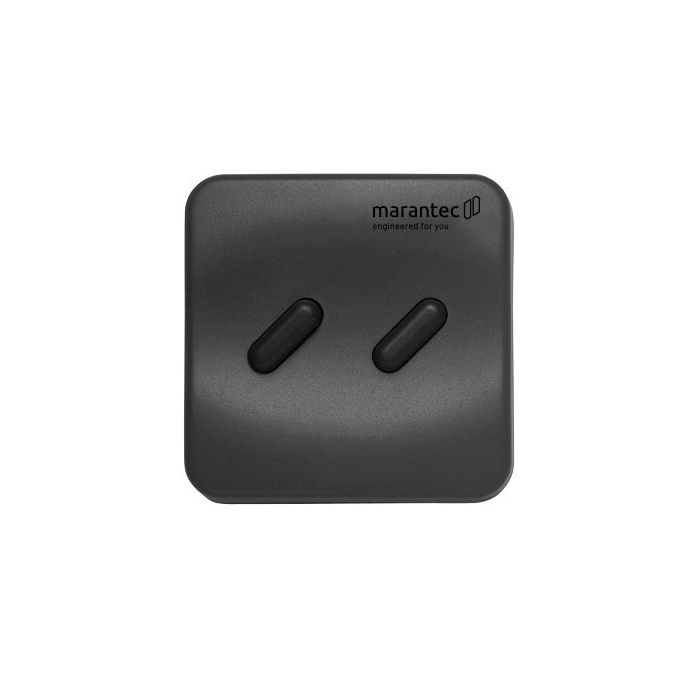

Command 131

For all Marantec controllers and third-party products (in conjunction with corresponding multi-bit receiver).
SKU
P6524
Available in many variants
Command 131

Scope of delivery:

  • Radio interior push button with 2 batteries
  • Coding cable
  • Installation material

Features:

  • 2 function keys for free assignment
  • Connection with conventional wiring for external pushbuttons for direct switching of each function key
  • Signaling by red LED
  • Simple and direct copying of a handheld transmitter key to another handheld transmitter by means of plug-in contacts
Command 131
Product descriptive data
Antenna Integrated
Number of freely programmable keys 2
Inputs

2 inputs for push buttons
Color RAL 7011 RAL 7016
Radio technology Multi-Bit
Channels 2
Communication direction Unidirectional
Protection class IP20
Push button type Push button
Radio coding Marantec
Application area
Temperature (min./max.) [°C] -20/60
Electrical data
Battery count 2
battery type CR2032, 3 V
Dimensions and weights
Dimensions (WxHxD) [mm] 80x80x27
