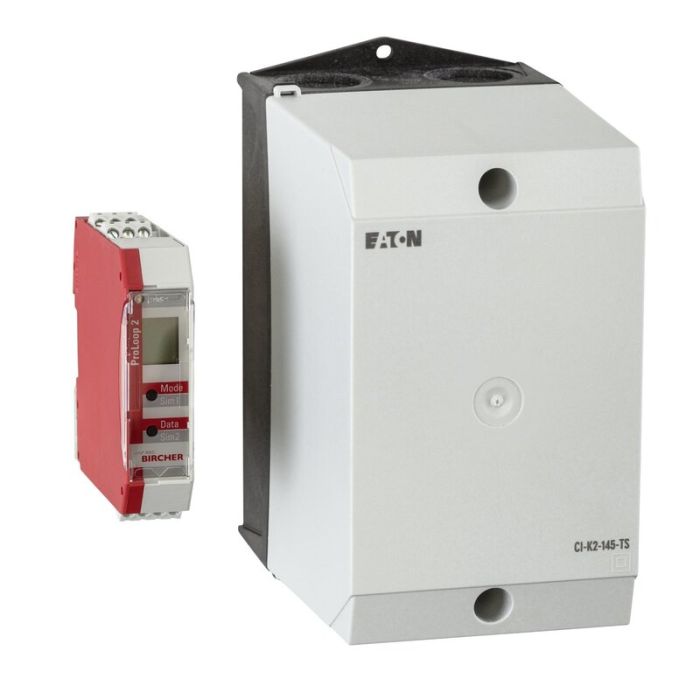

Control 403 Induction loop detector, 2-channel, 230 V-AC in housing

Induction loop detector, 2-channel, 230 V-AC, in housing 181x100x145 mm. For all controls. Can only be used in conjunction with a loop cable.

SKU

184379

EAN Code

4062434014615

Predecessor

104058

Quantity

PAU

Quantity

Control 403 Induction loop detector, 2-channel, 230 V-AC in housing

Scope of delivery:

Loop detector in housing

Features:

Contactless operation by passing over an induction loop
Directional detection avoids false openings and saves energy costs
Automatic measurement and display of loop inductance
Immediate error detection on the illuminated LC display
Easy programming and simulation possibility
Max. detectable vehicle speed of 50 km/h (with appropriate loop)
Installation on a top-hat rail
Weather resistant housing

Control 403

Product descriptive data

Connection type Conventional

Number of contacts 3

Contact type 3 CO

Protection class IP65

Application area

Temperature (min./max.) [°C] -20/60

Electrical data

Operating voltage [V] 100-240 V/1~

Operating voltage type Alternating current

Power consumption [VA/W/kW] 2.9 W

Contact load (max.)

Loop output: 240 V-AC/2 A; 30 V-DC/1 A

Alarm output: 40 V-AC/40 V-DC/0.3 A

Loop inductance max. 20-1.000 µH, ideal 80-300 µH

Dimensions and weights

Weight [kg] 0.2

Dimensions (WxHxD) [mm] 100x181x145

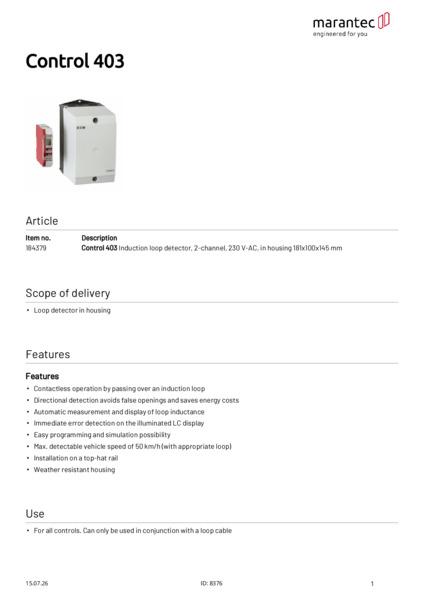

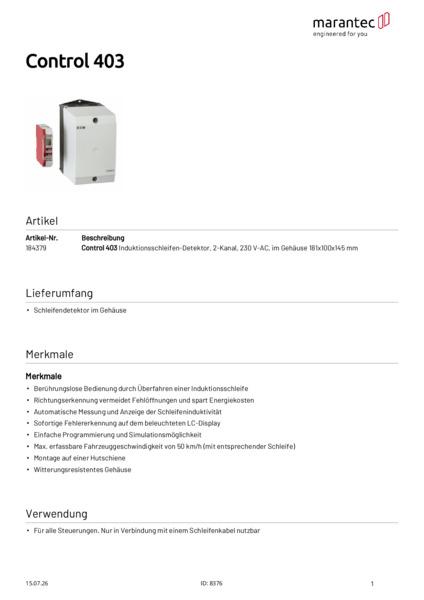

Technical data
