Digital 178.2

module antenna and magnetic base antenna with 5 m cable, uni-directional, 868 MHz Multi-Bit. For Comfort 211, 211 accu, 211 solar, 220.2, 250.2, 252.2 and 257.2. For Control x.51. For Control x.81. For Parc 200 and 200 speed with Control x.22. For Dynamic vario DC.
SKU
104225
4062434001448
Digital 178.2

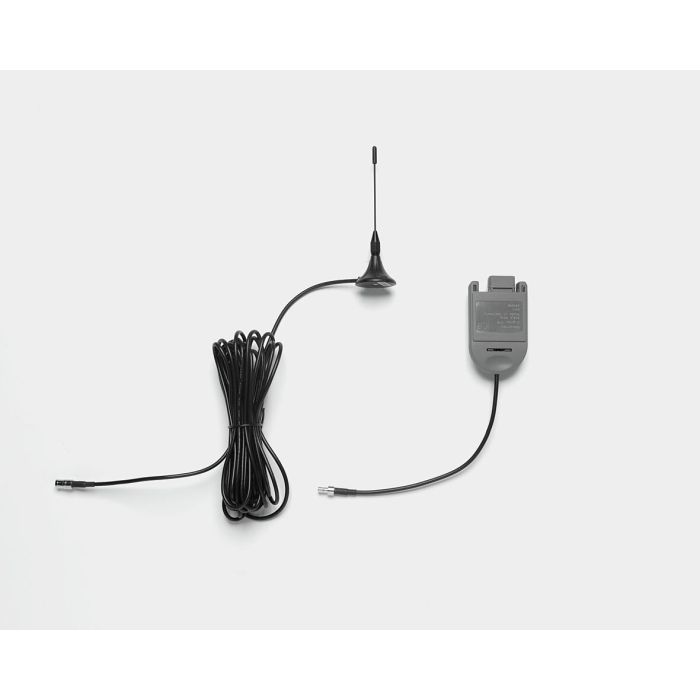

Scope of delivery:

  • Module antenna with connection for magnetic base antenna
  • Magnetic base antenna with connection cable, 5.000 mm
  • Installation bracket
  • Installation material
Digital 178.2
Product descriptive data
Connection type Pluggable
Antenna Rod antenna with magnetic base
Radio frequency 868 MHz
Radio technology Multi-Bit
Channels 1
Communication direction Unidirectional
Protection class IP00
Radio coding Marantec
Application area
Temperature (min./max.) [°C] -20/60
Electrical data
Operating voltage [V] 12/24 V-AC 12/24 V-DC
Rated current [A] 0.013
Dimensions and weights
Dimensions (WxHxD) [mm] 37x13x53
