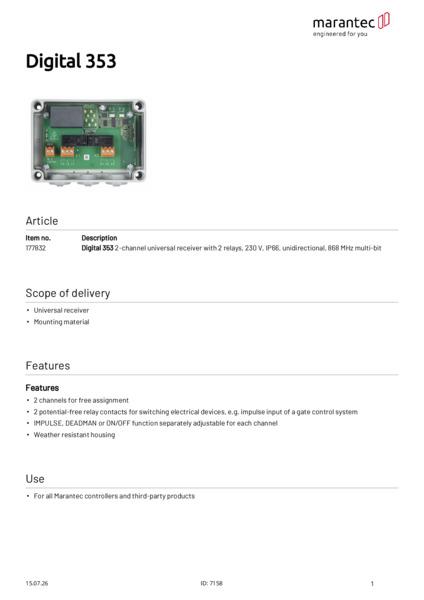

Digital 353 2-channel universal receiver 230 V, IP66, 868 MHz Multi-Bit

2-channel universal receiver with 2 relays, 230 V, IP66, unidirectional, 868 MHz multi-bit For all Marantec controllers and third-party products
SKU
177832
4062434014745
Digital 353 2-channel universal receiver 230 V, IP66, 868 MHz Multi-Bit

Scope of delivery:

  • Universalempfänger
  • Montagematerial

Features:

  • 2 channels for free assignment
  • 2 potential-free relay contacts for switching electrical devices, e.g. pulse input of a gate control system
  • IMPULSE, TOTMANN or ON/OFF function separately adjustable for each channel
  • Weather resistant housing
Digital 353
Product descriptive data
Connection type Conventional
Antenna Integrated
Number of memory locations 200
Outputs

2 potential-free relay contacts (CO)
Color RAL 7035
Radio frequency 868 MHz
Radio technology Multi-Bit
Channels 2
Communication direction Unidirectional
Contact type 2 CO
Protection class IP66
Radio coding Marantec
Application area
Temperature (min./max.) [°C] -20/60
Electrical data
Operating voltage [V] 230 V/1~
Operating voltage type Alternating current
Power consumption [VA/W/kW] 1.7
Power consumption in standby [VA/W/kW] 0.8
Contact load (max.)

230 V-AC/16 A
Nominal frequency [Hz] 50
Dimensions and weights
Dimensions (WxHxD) [mm] 130x94x57
Marantec Marienfeld GmbH & Co. KG
Remser Brook 11
33428 Marienfeld
