Digital 371

For all Marantec controllers and third-party products
SKU
P6567
Available in many variants
Digital 371

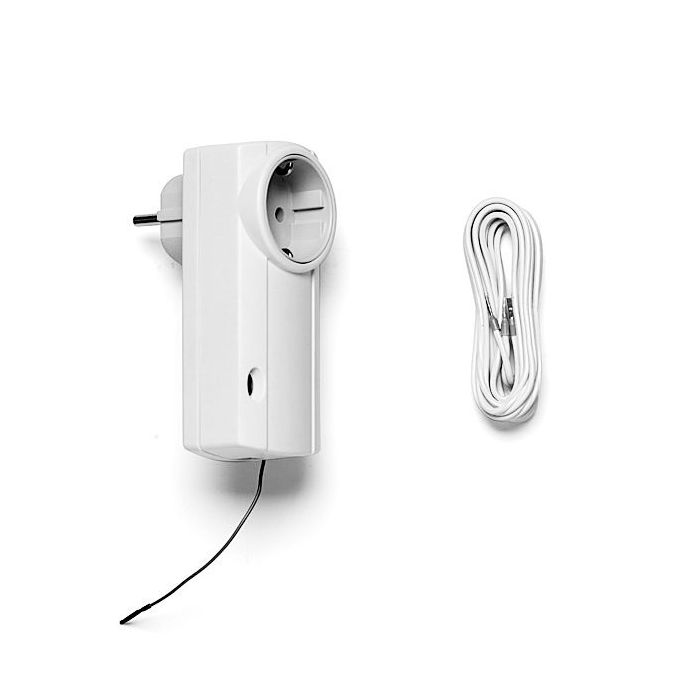

Scope of delivery:

  • Socket receiver
  • Connecting cable, 1,500 mm

Features:

  • 1 channel for free assignment
  • 1 potential-free relay contact for switching an electrical device, e.g. pulse input of a gate control system
  • IMPULSE function
  • Power supply via the mains socket of the operator without blocking it
  • Easy conversion of third-party operators to Marantec handheld transmitters or to change the radio frequency
Digital 371
Product descriptive data
Connection type Pluggable
Antenna Wire antenna
Number of memory locations 1
Outputs

1 potential-free relay contact (NO)
Color RAL 9003
Radio technology Multi-Bit
Channels 1
Communication direction Unidirectional
Contact type 1 NO
Protection class IP20
Radio coding Marantec
Application area
Temperature (min./max.) [°C] -10/40
Electrical data
Operating voltage [V] 230 V/1~
Operating voltage type Alternating current
Power consumption [VA/W/kW] 6.9 W
Contact load (max.)

24 V-DC/1A
Rated current [A] 0.03
Dimensions and weights
Dimensions (WxHxD) [mm] 50x120x75
