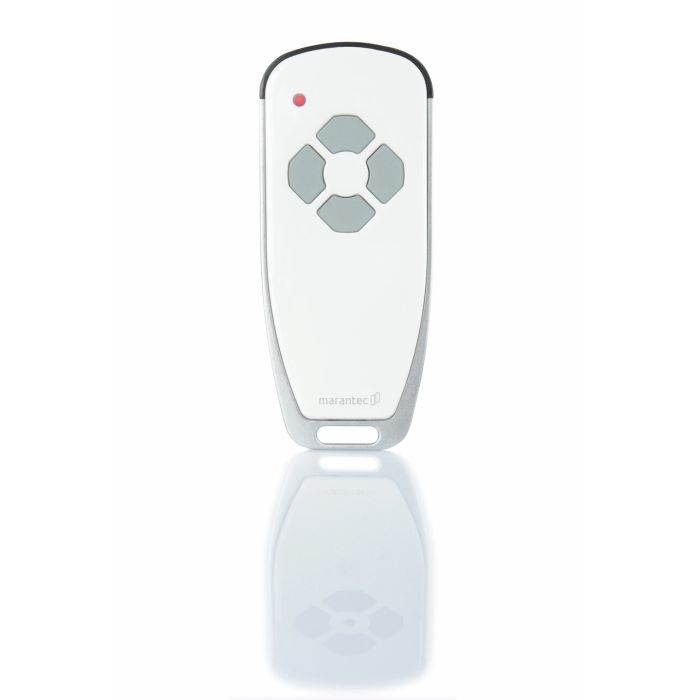

Digital 564 Mini hand transmitter 4-channel

For all Marantec controls and third-party products (in conjunction with corresponding bi.linked receiver).
SKU
P6514
Available in many variants
Digital 564 Mini hand transmitter 4-channel

Scope of delivery:

  • Remote control with battery
  • Wall bracket with installation material
  • Sun visor clip

Features:

  • 4 function keys for free assignment
  • Signaling by red LED
  • Eyelet for attachment to keychain or lanyard
  • High security through 128-bit AES-encrypted radio transmission and constantly changing radio code (rolling code method)
Digital 564
Product descriptive data
Antenna Integrated
Number of freely programmable keys 4
Color RAL 9005 RAL 9016
Radio technology bi.linked
Housing type Mini
Channels 4
Communication direction Unidirectional
Radio coding Marantec
Application area
Temperature (min./max.) [°C] -20/60
Electrical data
Battery count 1
battery type CR2032, 3 V
Dimensions and weights
Weight [kg] 0.04
Dimensions (WxHxD) [mm] 39x92x12
Marantec Marienfeld GmbH & Co. KG
Remser Brook 11
33428 Marienfeld



For questions to the manufacturer, please use this Contact form.

Wall bracket Mini for Mini hand transmitter Digital 564/663/382/384, set of 5
