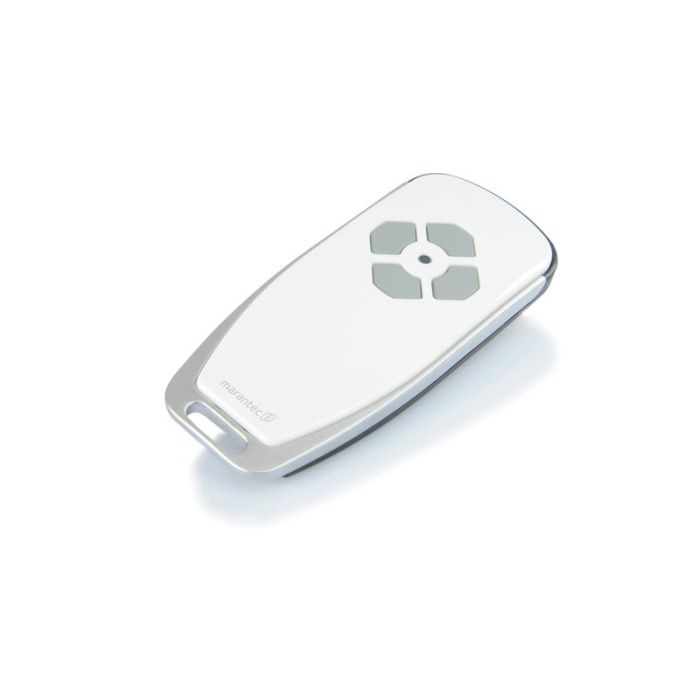

Digital 663 Mini hand transmitter 3-channel with status request 868 MHz bi.linked

3-channel mini hand transmitter with status request, bidirectional, 868 MHz bi.linked. For all Marantec controls and third-party products (in conjunction with corresponding bi.linked receiver).
SKU
101117
4062434000946
160384,160391,160398
Digital 663 Mini hand transmitter 3-channel with status request 868 MHz bi.linked

Scope of delivery:

  • Hand transmitter with battery
  • Wall bracket with mounting material

Features:

  • 3 function keys for free assignment
  • 1 key for querying the gate position
  • Automatic message of the direction of travel after pressing the button
  • Multicolor signaling by LED
  • Eyelet for attachment to keychain or lanyard
  • High security through 128-bit AES-encrypted radio transmission and constantly changing radio code (rolling code method)
Digital 663
Product descriptive data
Antenna Integrated
Number of freely programmable keys 3
Number of pre-programmed keys 1
Color RAL 9005 RAL 9016
Radio frequency 868 MHz
Radio technology bi.linked
Housing type Mini
Channels 4
Communication direction Bidirectional
Radio coding Marantec
Application area
Temperature (min./max.) [°C] -20/60
Electrical data
Battery count 1
battery type CR2032, 3 V
Dimensions and weights
Weight [kg] 0.04
Dimensions (WxHxD) [mm] 39x92x12
