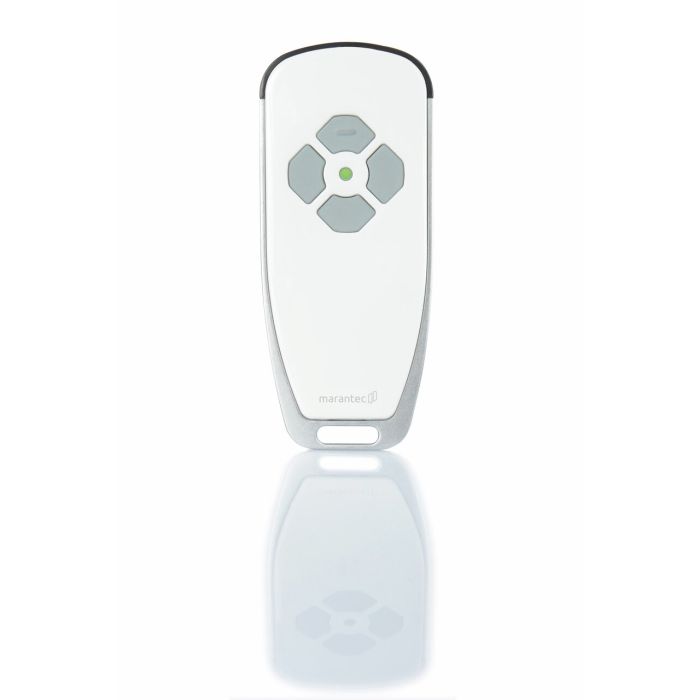

Digital 663 Mini hand transmitter 3-channel bi.linked

For all Marantec controls and third-party products (in conjunction with corresponding bi.linked receiver).
SKU
P6517
Available in many variants
Digital 663 Mini hand transmitter 3-channel bi.linked

Scope of delivery:

  • Hand transmitter with battery
  • Wall bracket with mounting material

Features:

  • 3 Funktionstasten zur freien Belegung
  • 1 Taste zur Abfrage der Torposition
  • Automatische Meldung der Fahrtrichtung nach Tastendruck
  • Mehrfarbige Signalisierung durch LED
  • Öse zur Befestigung am Schlüsselbund oder Lanyard
  • Hohe Sicherheit durch 128 Bit AES-verschlüsselte Funkübertragung und ständig wechselnden Funk-Code (Rolling-Code Verfahren)
Digital 663
Product descriptive data
Antenna Integrated
Number of freely programmable keys 3
Number of pre-programmed keys 1
Color RAL 9005 RAL 9016
Radio technology bi.linked
Housing type Mini
Channels 4
Communication direction Bidirectional
Radio coding Marantec
Application area
Temperature (min./max.) [°C] -20/60
Electrical data
Battery count 1
battery type CR2032, 3 V
Dimensions and weights
Weight [kg] 0.04
Dimensions (WxHxD) [mm] 39x92x12
Marantec Marienfeld GmbH & Co. KG
Remser Brook 11
33428 Marienfeld



For questions to the manufacturer, please use this Contact form.

Wall bracket Mini for Mini hand transmitter Digital 564/663/382/384, set of 5
