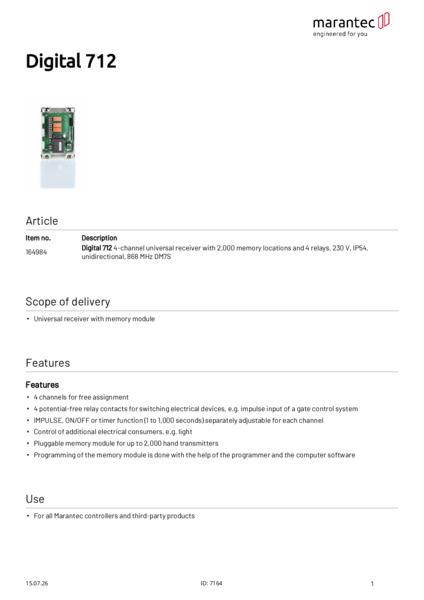

Digital 712 4-channel universal receiver, 4 relays, 230 V, 868 MHz DM7S

4-channel universal receiver with 2,000 memory locations and 4 relays, 230 V, IP54, unidirectional, 868 MHz DM7S For all Marantec controllers and third-party products
SKU
164984
4062434005620
Digital 712 4-channel universal receiver, 4 relays, 230 V, 868 MHz DM7S

Scope of delivery:

  • Universalempfänger mit Speichermodul

Features:

  • 4 channels for free assignment
  • 4 potential-free relay contacts for switching electrical devices, e.g. pulse input of a gate control system
  • IMPULSE, ON/OFF or timer function (1 to 1,000 seconds) separately adjustable for each channel
  • Control of additional electrical consumers, e.g. light
  • Pluggable memory module for up to 2,000 handheld transmitters
  • Programming of the memory module is done with the help of the programmer and the computer software
Digital 712
Product descriptive data
Connection type Conventional
Antenna Wire antenna
Number of memory locations 2,000
Outputs

4 potential-free relay contacts (2 CO, 2 NO)
Color Gray
Radio frequency 868 MHz
Radio technology DM7S
Channels 4
Communication direction Unidirectional
Contact type 2 CO + 2 NO
Protection class IP54
Radio coding Marantec
Application area
Temperature (min./max.) [°C] -20/60
Electrical data
Operating voltage [V] 230 V/1~
Operating voltage type Alternating current
Contact load (max.)

230 V-AC/5 A
Rated current [A] 0.02
Dimensions and weights
Dimensions (WxHxD) [mm] 120x120x60
