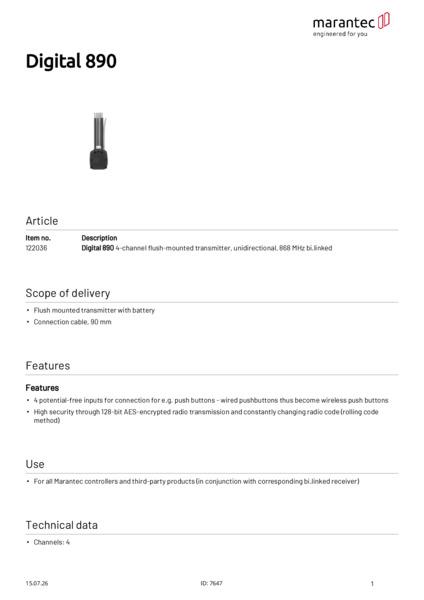

Digital 890 4-channel flush-mounted transmitter, 868 MHz bi.linked

4-channel flush-mounted transmitter, unidirectional, 868 MHz bi.linked. For all Marantec controllers and third-party products (in conjunction with corresponding bi.linked receiver).
SKU
122036
4062434003718
Digital 890 4-channel flush-mounted transmitter, 868 MHz bi.linked

Scope of delivery:

  • Flush mounted transmitter with battery
  • Connection cable, 90 mm

Features:

  • 4 potential-free inputs for connection for e.g. push buttons - wired pushbuttons thus become wireless push buttons
  • High security through 128-bit AES-encrypted radio transmission and constantly changing radio code (rolling code method)
Digital 890
Product descriptive data
Connection type Conventional
Antenna Wire antenna
Inputs

4 potential-free inputs for push buttons (NO)
Color RAL 7011
Radio frequency 868 MHz
Radio technology bi.linked
Channels 4
Communication direction Unidirectional
Protection class IP20
Radio coding Marantec
Application area
Installationarea Flush-mounted
Temperature (min./max.) [°C] -20/60
Electrical data
Battery count 1
battery type CR2032, 3 V
Dimensions and weights
Dimensions (WxHxD) [mm] 37x30x10
Marantec Marienfeld GmbH & Co. KG
Remser Brook 11
33428 Marienfeld
