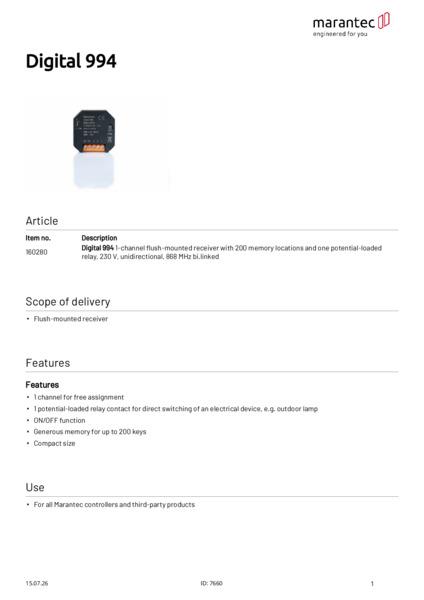

Digital 994 1-channel flush-mounted receiver 868 MHz bi.linked

1-channel flush-mounted receiver with 200 memory locations and one potential-loaded relay, 230 V, unidirectional, 868 MHz bi.linked. For all Marantec controllers and third-party products.
SKU
160280
4062434008690
Digital 994 1-channel flush-mounted receiver 868 MHz bi.linked

Scope of delivery:

  • Flush-mounted receiver

Features:

  • 1 channel for free assignment
  • 1 potential-loaded relay contact for direct switching of an electrical device, e.g. outdoor lamp
  • ON/OFF function
  • Generous memory for up to 200 keys
  • Compact size
Digital 994
Product descriptive data
Connection type Conventional
Antenna Integrated
Number of memory locations 200
Outputs

1 potential-free relay contact (N.O.)
Color RAL 7016
Radio frequency 868 MHz
Radio technology bi.linked
Channels 1
Communication direction Unidirectional
Contact type 1 NO
Protection class IP00
Radio coding Marantec
Application area
Temperature (min./max.) [°C] -20/60
Electrical data
Operating voltage [V] 230 V/1~
Operating voltage type Alternating current
Power consumption [VA/W/kW] 0.8 W
Power consumption in standby [VA/W/kW] 0.25 W
Contact load (max.)

230 V-AC/10 A/2,300 VA
Dimensions and weights
Dimensions (WxHxD) [mm] 48x48x25
