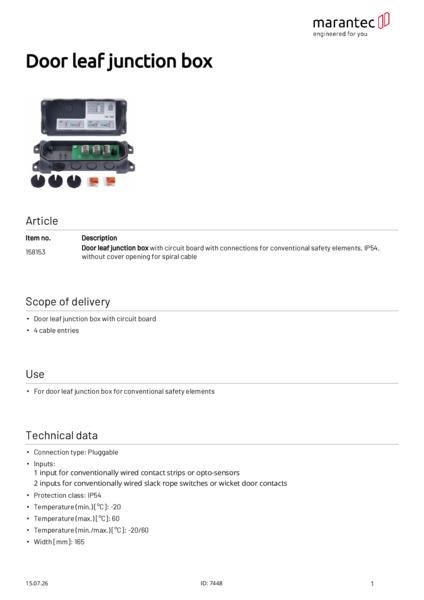

Door leaf junction box for OSE/8.2 kOhm (conventional)

with circuit board with connections for conventional safety elements, IP54, without cover opening for spiral cable. For door leaf junction box for conventional safety elements.
SKU
158153
4062434016084
Door leaf junction box for OSE/8.2 kOhm (conventional)

Scope of delivery:

  • Door leaf junction box with circuit board
  • 4 cable entries
Door leaf junction box
Product descriptive data
Connection type Pluggable
Inputs

1 input for conventionally wired contact strips or opto-sensors

2 inputs for conventionally wired slack rope switches or wicket door contacts
Protection class IP54
Application area
Temperature (min./max.) [°C] -20/60
Dimensions and weights
Weight [kg] 0.1
Dimensions (WxHxD) [mm] 165x60x40
Marantec Marienfeld GmbH & Co. KG
Remser Brook 11
33428 Marienfeld



For questions to the manufacturer, please use this Contact form.

Connection cable for connecting two door leaf junction boxes, 10 m
IP65 sealing set for door leaf junction boxes
