Pull-in safety device with 10 m range, 24 V DC, pre-assembled cable

with 10 m range, 24 V-DC, OSE, IP68, with 10.5/10.5 cable pre-mounted. For controls with connection for OSE pull-in safety devices.
SKU
96150
4062435001515
Pull-in safety device with 10 m range, 24 V DC, pre-assembled cable

Scope of delivery:

  • Transmitter with pull in safety devive, 10,500 mm connection cable
  • Receiver with pull in safety devive , 10,500 mm connection cable
  • 2 installation brackets

Features:

  • Optical safety device to protect against personal injury and damage to property
Draw-in protection
Product descriptive data
Connection type Conventional
Interfaces OSE
Protection class IP68
Application area
Temperature (min./max.) [°C] -10/55
Performance data
Range [m] 10
Range (min./max.) [m] 0/10
Electrical data
Operating voltage [V] 24 V-DC
Rated current [A] 0.06
Dimensions and weights
Weight [kg] 0.7
Cable length [m] 10.5
Dimensions (WxHxD) [mm] 73x40x20
Operating Manuals

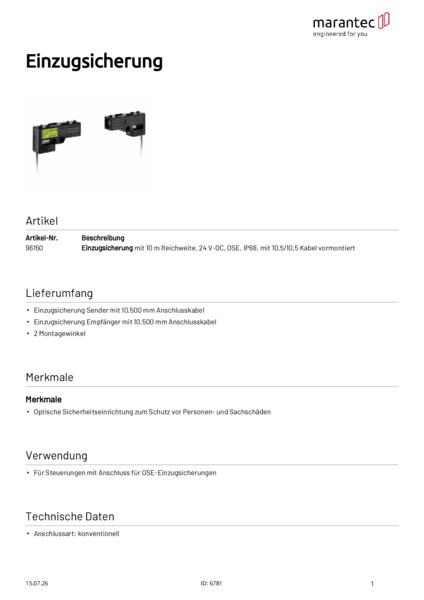

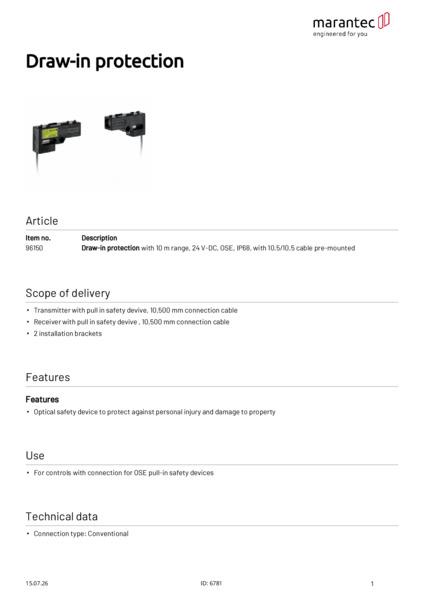

Download PDF Betriebsanleitung-Einzugssicherung-MAR-DE-EN-2024-02

Filetype: PDF

Language: DE, EN


Published at: Feb 13, 2024 		Preview
