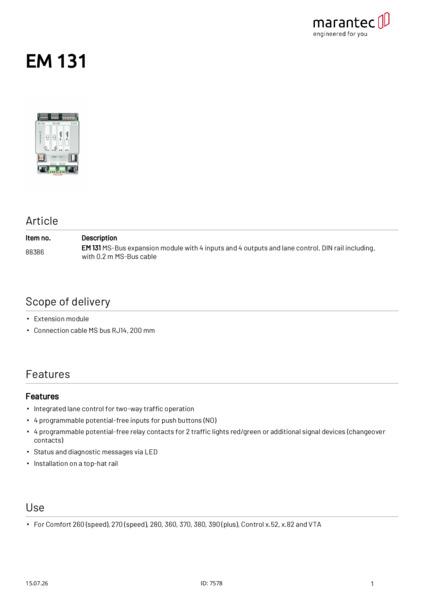

EM 131 extension module with 4 inputs/outputs, two-way traffic control

MS-Bus expansion module with 4 inputs and 4 outputs and lane control, DIN rail including, with 0.2 m MS-Bus cable. For Comfort 260 (speed), 270 (speed), 280, 360, 370, 380, 390 (plus), Control x.52, x.82 and VTA.
SKU
88386
4062434007143
EM 131 extension module with 4 inputs/outputs, two-way traffic control

Scope of delivery:

  • Extension module
  • Connection cable MS bus RJ14, 200 mm

Features:

  • Integrated lane control for two-way traffic operation
  • 4 programmable potential-free inputs for push buttons (NO)
  • 4 programmable potential-free relay contacts for 2 traffic lights red/green or additional signal devices (changeover contacts)
  • Status and diagnostic messages via LED
  • Installation on a top-hat rail
EM 131
Product descriptive data
Connection type Pluggable
Outputs

2 programmable potential-free relay contacts for 2 traffic lights red/green (CO)

2 programmable potential-free relay contacts for additional signal devices (CO)
Inputs

4 programmable potential-free inputs for pushbuttons (NO)
Contact type 4 CO
Interfaces MS bus (RJ14 connector)
Protection class IP00
Application area
Temperature (min./max.) [°C] -20/60
Electrical data
Operating voltage [V] 24 V-DC
Operating voltage type Direct current
Contact load (max.)

230 V/6 A
Dimensions and weights
Width (pitch units) 5
Dimensions (WxHxD) [mm] 84x126x48
Marantec Marienfeld GmbH & Co. KG
Remser Brook 11
33428 Marienfeld
