EM 171 Expansion Module with Two Programmable Relays in a CS small housing
MS-Bus expansion module with 2 programmable relays in a CS small housing, including a 3-meter MS-Bus cable. For Comfort 260 (speed), 270 (speed), 280, 360, 370, 380, 390 (plus), Control x.52, x.82 and VTA.
SKU
198731
EAN Code
4062434026915
Predecessor
85236
Prices are only visible after login.
EM 171 Expansion Module with Two Programmable Relays in a CS small housing
Scope of delivery:
- Extension module pre-assembled in CS mini housing
- Connection cable MS bus 4-pin/MS bus RJ14, 3,000 mm
- Installation material
Features:
- 2 programmable potential-free relay outputs (changeover contacts)
- Status and diagnostic messages via LED
- Installation on a top-hat rail
- Weather resistant housing

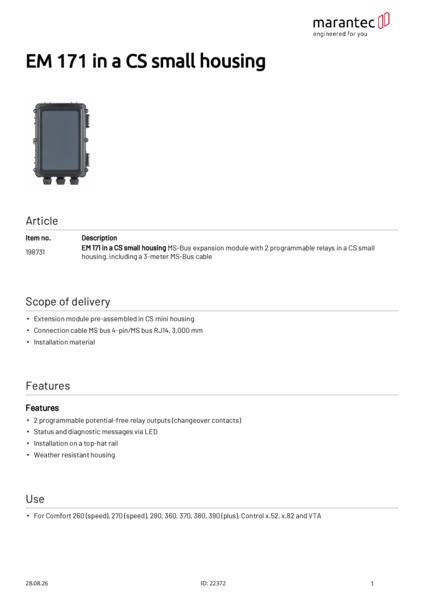

EM 171 in a CS small housing
Product descriptive data
Connection type
Pluggable
Outputs
2 programmable potential-free relay outputs (CO)
Contact type
2 CO
Interfaces
MS bus (RJ14 connector) MS bus (4-pin connector)
Protection class
IP65
Application area
Temperature (min./max.) [°C]
-20/60
Electrical data
Operating voltage [V]
24 V-DC
Operating voltage type
Direct current
Contact load (max.)
230 V/6 A
Dimensions and weights
Dimensions (WxHxD) [mm]
165x220x105
