EM 172 extension module with 4 inputs/outputs, two-way traffic control

MS-Bus expansion module with 4 inputs and 4 outputs for DIN rail installation, including 0.2 m MS-Bus cable with RJ14 plug and 0.5 m MS-Bus cable with 4-pin flat plug. For CS 265 and CS 320.
SKU
106309
4062434015407
EM 172 extension module with 4 inputs/outputs, two-way traffic control

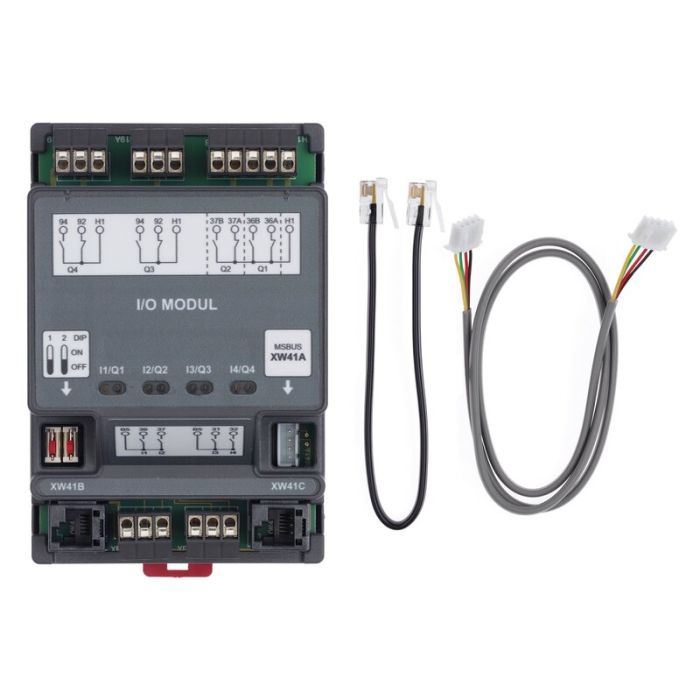

Scope of delivery:

  • Extension module
  • Connecting cable MS bus RJ14, 200 mm
  • Connecting cable MS bus 4-pin, 500 mm

Features:

  • 4 programmable inputs
  • 4 programmable potential-free relay contacts
  • Status and diagnostic messages via LED
  • Mounting on a top-hat rail
EM 172
Product descriptive data
Connection type Pluggable
Outputs

4 programmable potential-free relay contacts (CO)
Inputs

4 programmable potential-free inputs for pushbuttons (NO)
Contact type 4 CO
Interfaces MS bus (RJ14 connector) MS bus (4-pin connector)
Protection class IP00
Application area
Temperature (min./max.) [°C] -20/60
Electrical data
Operating voltage [V] 24 V-DC
Operating voltage type Direct current
Contact load (max.)

230 V/6 A
Dimensions and weights
Width (pitch units) 5
Dimensions (WxHxD) [mm] 84x126x48
Marantec Marienfeld GmbH & Co. KG
Remser Brook 11
33428 Marienfeld



For questions to the manufacturer, please use this Contact form.

    Subscription for product:

    EM 172 extension module with 4 inputs/outputs, two-way traffic control / Product SKU: P15819
