EM 172 extension module with 4 inputs/outputs, two-way traffic control, in CS mini housing

MS-Bus expansion module with 4 inputs and 4 outputs in CS mini housing, including 3 m MS-Bus cable. For CS 265 and CS 320.
SKU
121722
4062434009413
EM 172 extension module with 4 inputs/outputs, two-way traffic control, in CS mini housing

Scope of delivery:

  • Extension module pre-assembled in CS mini housing
  • Connection cable MS bus 4-pin/MS bus RJ14, 3,000 mm
  • Installation material

Features:

  • 4 programmable inputs
  • 4 programmable potential-free relay contacts
  • Status and diagnostic messages via LED
  • Installation on a top-hat rail
  • Weather resistant housing
EM 172 in CS mini housing
Product descriptive data
Connection type Pluggable
Outputs

4 programmable potential-free relay contacts (CO)
Inputs

4 programmable potential-free inputs for pushbuttons (NO)
Contact type 4 CO
Interfaces MS bus (RJ14 connector) MS bus (4-pin connector)
Protection class IP65
Application area
Temperature (min./max.) [°C] -20/60
Electrical data
Operating voltage [V] 24 V-DC
Operating voltage type Direct current
Contact load (max.)

230 V/6 A
Dimensions and weights
Dimensions (WxHxD) [mm] 165x220x105
Technical data

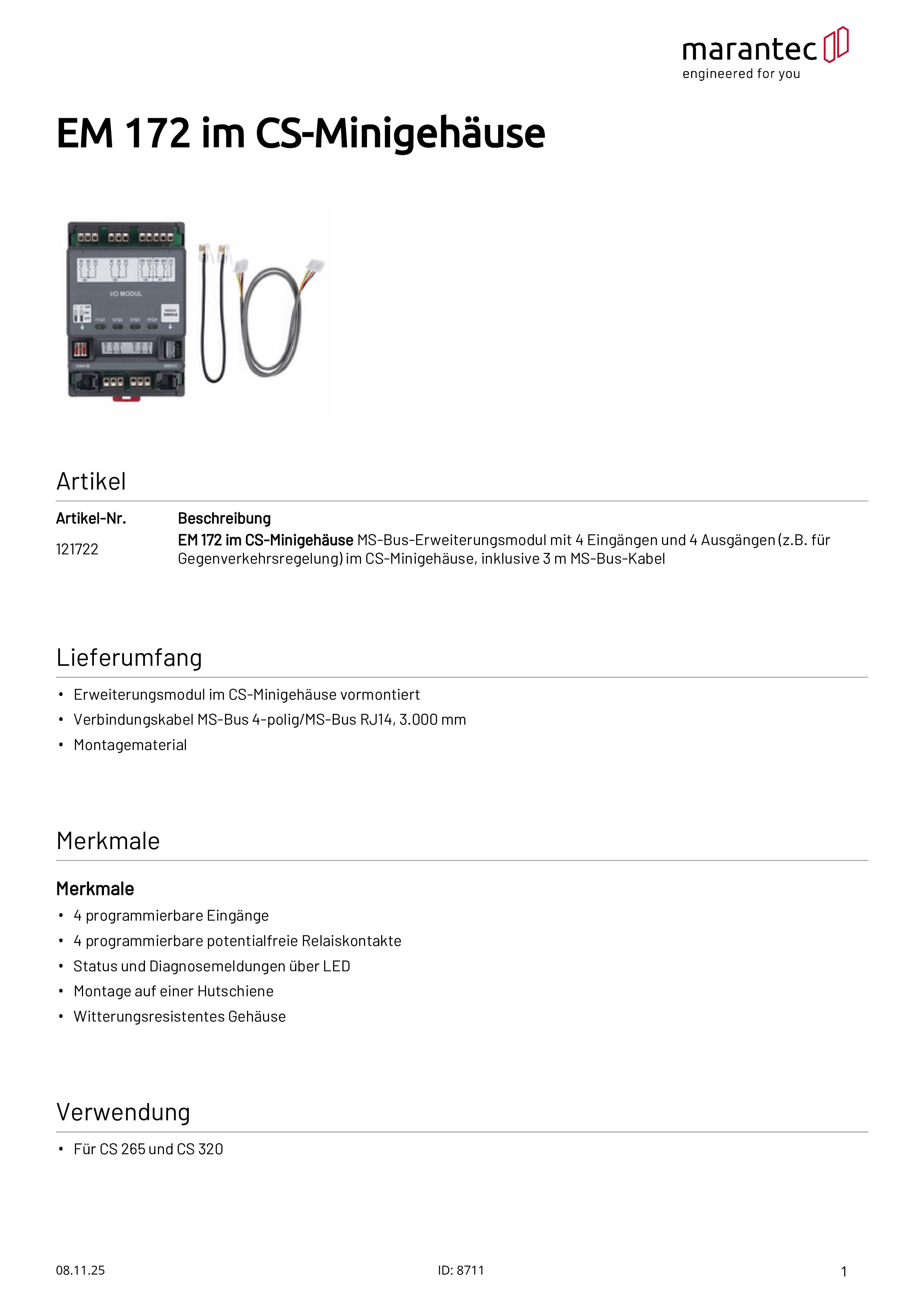

Download PDF marantec-datenblatt-121722-em-172-im-cs-minigehäuse-2025-09-06-de

Filetype: PDF

 Preview

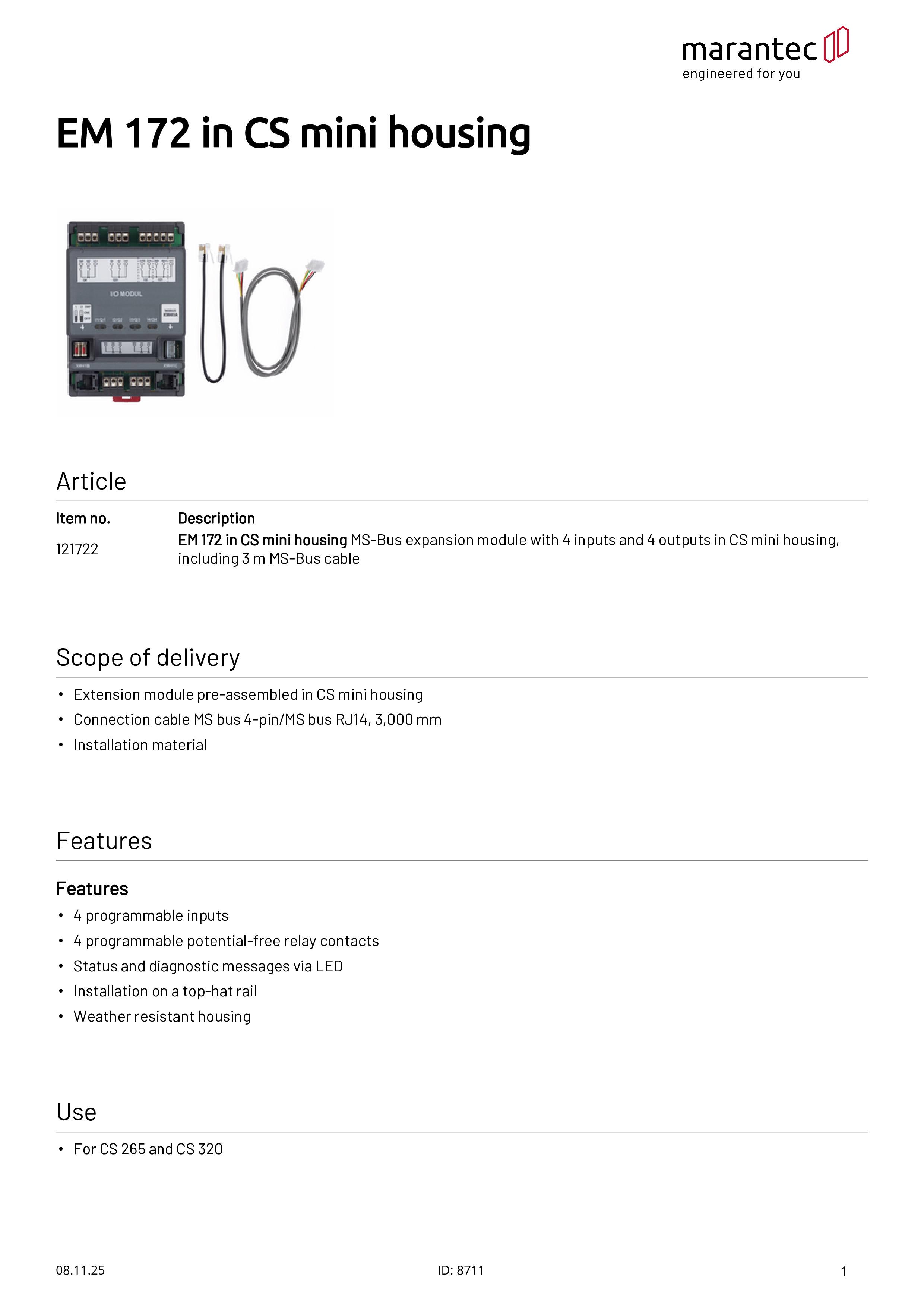

Download PDF marantec-data-sheet-121722-em-172-in-cs-mini-housing-2025-09-17-en

Filetype: PDF

 Preview
