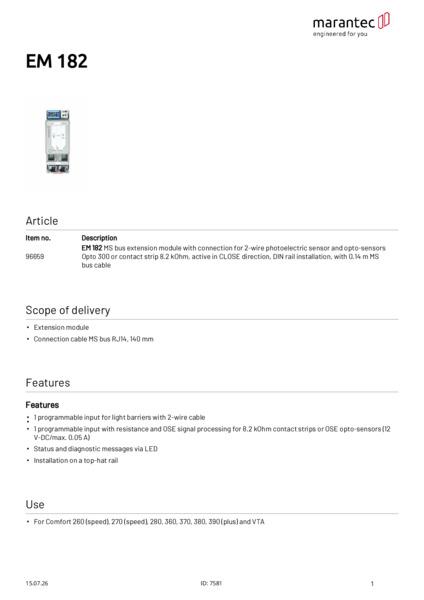

EM 182 extension module for 2-wire photoelectric sensor and Opto 300 in CLOSE direction

MS bus extension module with connection for 2-wire photoelectric sensor and opto-sensors Opto 300 or contact strip 8.2 kOhm, active in CLOSE direction, DIN rail installation, with 0.14 m MS bus cable. For Comfort 260 (speed), 270 (speed), 280, 360, 370, 380, 390 (plus) and VTA.
SKU
96659
EAN Code
4062434012604

Prices are only visible after login.

EM 182 extension module for 2-wire photoelectric sensor and Opto 300 in CLOSE direction

Scope of delivery:

  • Extension module
  • Connection cable MS bus RJ14, 140 mm

Features:

  • 1 programmable input for light barriers with 2-wire cable
  • 1 programmable input with resistance and OSE signal processing for 8.2 kOhm contact strips or OSE opto-sensors (12 V-DC/max. 0.05 A)
  • Status and diagnostic messages via LED
  • Installation on a top-hat rail
EM 182
Product descriptive data
Connection type Pluggable
Inputs

1 programmable input for photoelectric sensors with 2-wire cabling

1 programmable input with resistance and OSE signal processing for 8.2 kOhm contact strips or OSE optosensors (12/24 V DC/max. 0.6 W)
Interfaces MS bus (RJ14 connector) 2-wire OSE
Protection class IP00
Application area
Temperature (min./max.) [°C] -20/60
Electrical data
Operating voltage [V] 24 V-DC
Operating voltage type Direct current
Dimensions and weights
Width (pitch units) 2.5
Dimensions (WxHxD) [mm] 45x126x48
Marantec Marienfeld GmbH & Co. KG
Remser Brook 11
33428 Marienfeld
