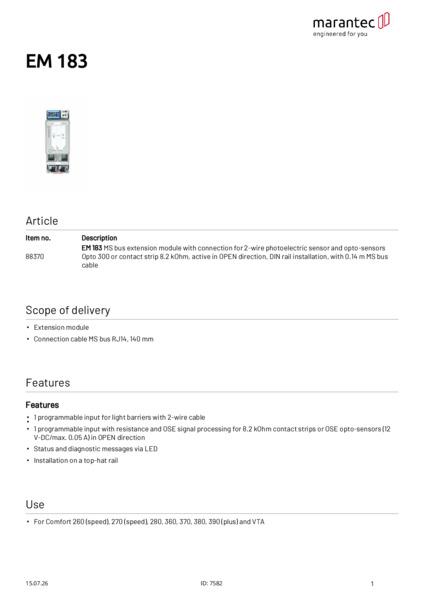

EM 183 extension module for 2-wire photoelectric sensor and Opto 300 in OPEN direction

MS bus extension module with connection for 2-wire photoelectric sensor and opto-sensors Opto 300 or contact strip 8.2 kOhm, active in OPEN direction, DIN rail installation, with 0.14 m MS bus cable. For Comfort 260 (speed), 270 (speed), 280, 360, 370, 380, 390 (plus) and VTA.
SKU
88370
EAN Code
4062434012611

Prices are only visible after login.

EM 183 extension module for 2-wire photoelectric sensor and Opto 300 in OPEN direction

Scope of delivery:

  • Extension module
  • Connection cable MS bus RJ14, 140 mm

Features:

  • 1 programmable input for light barriers with 2-wire cable
  • 1 programmable input with resistance and OSE signal processing for 8.2 kOhm contact strips or OSE opto-sensors (12 V-DC/max. 0.05 A) in OPEN direction
  • Status and diagnostic messages via LED
  • Installation on a top-hat rail
EM 183
Product descriptive data
Connection type Pluggable
Inputs

1 programmable input for photoelectric sensors with 2-wire cabling

1 programmable input with resistance and OSE signal processing for 8.2 kOhm contact strips or OSE opto-sensors (12/24 V DC/max. 0.6 W)
Interfaces MS bus (RJ14 connector) 2-wire OSE
Protection class IP00
Application area
Temperature (min./max.) [°C] -20/60
Electrical data
Operating voltage [V] 24 V-DC
Operating voltage type Direct current
Dimensions and weights
Width (pitch units) 2.5
Dimensions (WxHxD) [mm] 45x126x48
