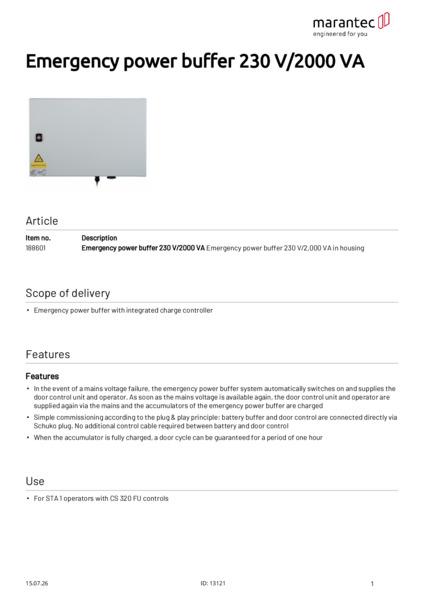

Emergency power buffer 230 V/2000 VA in housing

Emergency power buffer 230 V/2,000 VA in housing. For STA 1 operators with CS 320 FU controls.
SKU
188601
4062434014387
Emergency power buffer 230 V/2000 VA in housing

Scope of delivery:

  • Emergency power buffer with integrated charge controller

Features:

  • In the event of a mains voltage failure, the emergency power buffer system automatically switches on and supplies the door control unit and operator. As soon as the mains voltage is available again, the door control unit and operator are supplied again via the mains and the accumulators of the emergency power buffer are charged
  • Simple commissioning according to the plug & play principle: battery buffer and door control are connected directly via Schuko plug. No additional control cable required between battery and door control
  • When the accumulator is fully charged, a door cycle can be guaranteed for a period of one hour
Emergency power buffer 230 V/2000 VA
Product descriptive data
Protection class IP44
Application area
Temperature (min./max.) [°C] 0/40
Performance data
Output power [kW] 1.4
Electrical data
Battery capacity [Ah] 18
Output voltage [V] 230 V/1~
Input voltage [V] 220-240 V-AC
Mains frequency [Hz] 50/60
Dimensions and weights
Weight [kg] 25
Dimensions (WxHxD) [mm] 600x400x210
