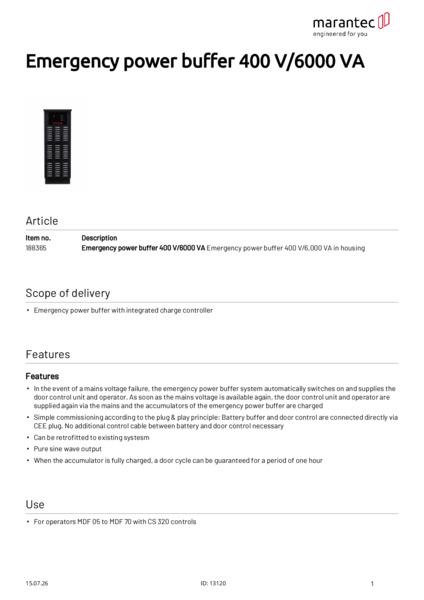

Emergency power buffer 400 V/6000 VA

  • Speditionsartikel
    Speditionsartikel
    Speditionsartikel
Emergency power buffer 400 V/6,000 VA in housing. For operators MDF 05 to MDF 70 with CS 320 controls.
SKU
188365

Prices are only visible after login.

Emergency power buffer 400 V/6000 VA

Scope of delivery:

  • Emergency power buffer with integrated charge controller

Features:

  • In the event of a mains voltage failure, the emergency power buffer system automatically switches on and supplies the door control unit and operator. As soon as the mains voltage is available again, the door control unit and operator are supplied again via the mains and the accumulators of the emergency power buffer are charged
  • Simple commissioning according to the plug & play principle: Battery buffer and door control are connected directly via CEE plug. No additional control cable between battery and door control necessary
  • Can be retrofitted to existing systesm
  • Pure sine wave output
  • When the accumulator is fully charged, a door cycle can be guaranteed for a period of one hour
Emergency power buffer 400 V/6000 VA
Product descriptive data
Protection class IP32
Application area
Temperature (min./max.) [°C] 0/40
Performance data
Output power [kW] 5.4
Electrical data
Battery capacity [Ah] 152
Output voltage [V] 400 V/3~
Input voltage [V] 400 V/3~
Mains frequency [Hz] 50
Dimensions and weights
Weight [kg] 84
Dimensions (WxHxD) [mm] 260x720x892
