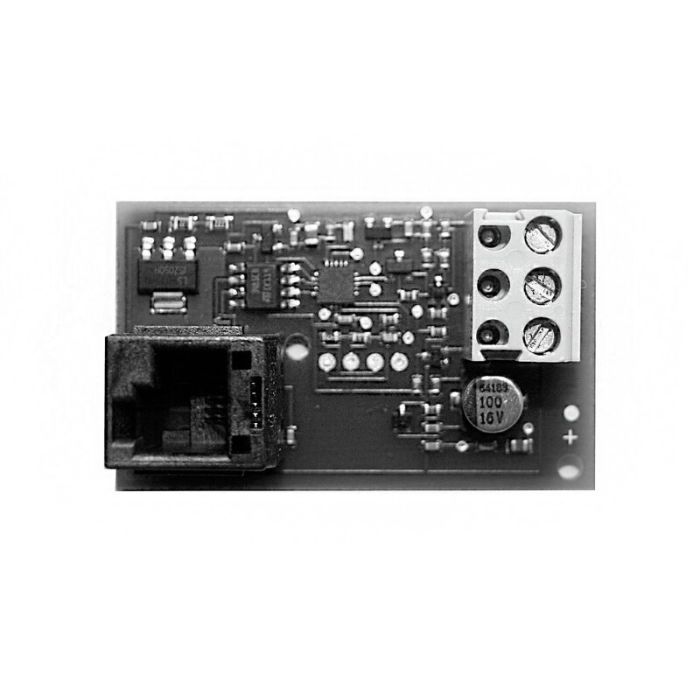

EP 143 Expansion board for optical sensors/contact strip

Expansion board with connection for opto-sensors/contact strip 8.2 kOhm, MS bus, with 0.2 m MS bus cable and holder for garage door openers. For Comfort 260 (speed), 270 (speed), 280, 360, 370, and 380.
SKU
100751
EAN Code
4062434000656

Prices are only visible after login.

EP 143 Expansion board for optical sensors/contact strip

Scope of delivery:

  • Expansion circuit board
  • Mounting compartment for garage door openers
  • Connection cable MS bus RJ14, 200 mm

Features:

  • 1 programmable input with resistance and OSE signal processing for 8.2 kOhm contact strips or OSE opto-sensors (12 V-DC/max. 0.05 A)
  • Compact size enables accommodation in the operator housing
EP 143
Product descriptive data
Connection type Pluggable
Inputs

1 programmable input with resistance and OSE signal processing for 8.2 kOhm contact strips or OSE opto-sensors (12 V-DC/max. 0.05 A)
Interfaces MS bus (RJ14 connector) OSE
Protection class IP00
Electrical data
Operating voltage [V] 24 V-DC
Operating voltage type Direct current
Dimensions and weights
Dimensions (WxHxD) [mm] 30x50x20
