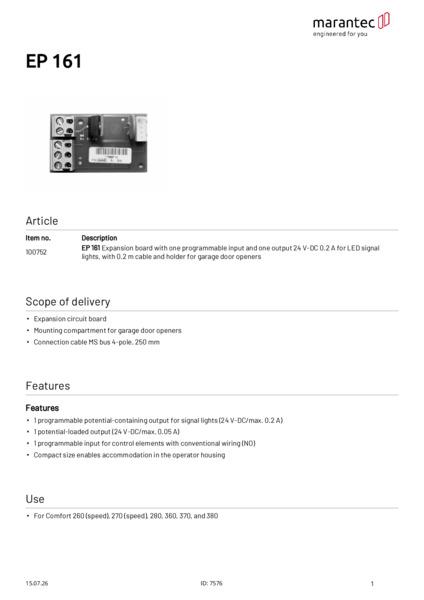

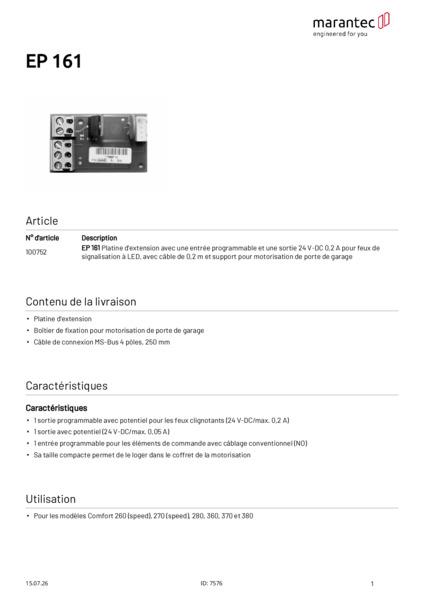

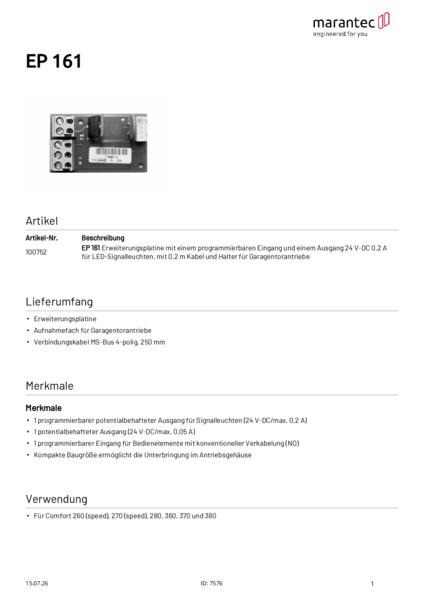

EP 161 Extension board for 24 V-DC LED signal lights, max. 0.2 A

Expansion board with one programmable input and one output 24 V-DC 0.2 A for LED signal lights, with 0.2 m cable and holder for garage door openers. For Comfort 260 (speed), 270 (speed), 280, 360, 370, and 380.
SKU
100752
EAN Code
4062434000663

Prices are only visible after login.

EP 161 Extension board for 24 V-DC LED signal lights, max. 0.2 A

Scope of delivery:

  • Expansion circuit board
  • Mounting compartment for garage door openers
  • Connection cable MS bus 4-pole, 250 mm

Features:

  • 1 programmable potential-containing output for signal lights (24 V-DC/max. 0.2 A)
  • 1 potential-loaded output (24 V-DC/max. 0.05 A)
  • 1 programmable input for control elements with conventional wiring (NO)
  • Compact size enables accommodation in the operator housing
EP 161
Product descriptive data
Connection type Pluggable
Outputs

1 programmable potential-loaded output for signal lights (24 V-DC/max. 0.2 A)

1 potential-loaded output (24 V-DC/max. 0.05 A)
Inputs

1 programmable input for control elements with conventional wiring (NO)
Contact type 1 NO
Interfaces MS bus (4-pin connector)
Protection class IP00
Electrical data
Operating voltage [V] 24 V-DC
Operating voltage type Direct current
Dimensions and weights
Dimensions (WxHxD) [mm] 30x50x20
