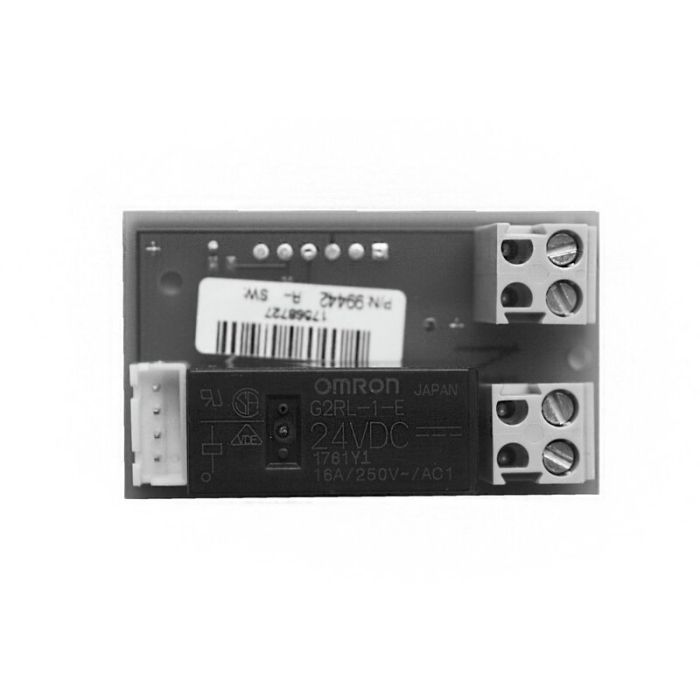

EP 163 Expansion board with programmable input and relay
Expansion board with one programmable input and one programmable relay (max. 48 V AC/DC, 60 W), with a 0.2 m MS-Bus cable and mount for garage door openers. For Comfort 260 (speed), 270 (speed), 280, 360, 370, and 380.
SKU
100753
EAN Code
4062434000670
Prices are only visible after login.
EP 163 Expansion board with programmable input and relay
Scope of delivery:
- Expansion circuit board
- Mounting compartment for garage door openers
- Connection cable MS bus 4-pole, 250 mm
Features:
- 1 programmable potential-free relay contact
- 1 programmable input for control elements with conventional wiring (NO)
- Compact size enables accommodation in the operator housing
EP 163
Product descriptive data
Connection type
Pluggable
Outputs
1 programmable, potential-free relay contact (NO)
Inputs
1 programmable input for control elements with conventional wiring (NO)
Contact type
2 NO
Interfaces
MS bus (4-pin connector)
Protection class
IP00
Electrical data
Operating voltage [V]
24 V-DC
Operating voltage type
Direct current
Contact load (max.)
48 V AC/60 W; 48 V DC/60 W
Dimensions and weights
Dimensions (WxHxD) [mm]
30x50x20
