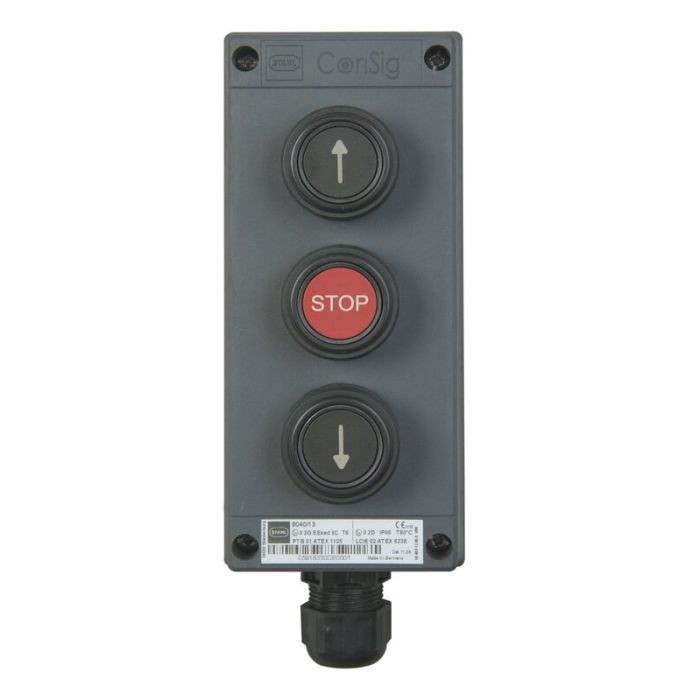

Ex 3-fold push-button OPEN/STOP/CLOSE, IP66, surface-mounted, for zone 1/ 2/21/22
Ex 3 series push button OPEN/STOP/CLOSE, IP66, surface mount, for zones 1, 2, 21 and 22 For all Marantec controls and third-party products
SKU
89590
Item is not available
Note
Product added to cart.
Loading...
Ex 3-fold push-button OPEN/STOP/CLOSE, IP66, surface-mounted, for zone 1/ 2/21/22
Scope of delivery:
- 3-fold push button
Ex 3-series push button
Product descriptive data
Material
Polyester resin (glass fiber reinforced)
Protection class
IP66
Application area
ATEX assembly area
EX area
ATEX zone (gas)
Zone 1 Zone 2
ATEX zone (dust)
Zone 21 Zone 22
Temperature (min./max.) [°C]
-20/40
Electrical data
Load capacity current (max.) [A]
6
Dimensions and weights
Dimensions (WxHxD) [mm]
80x185x72
