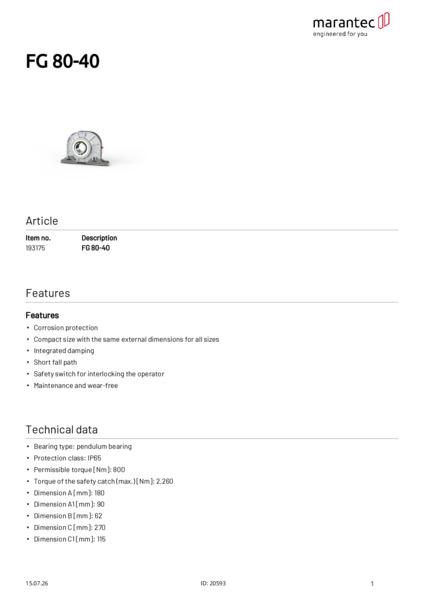

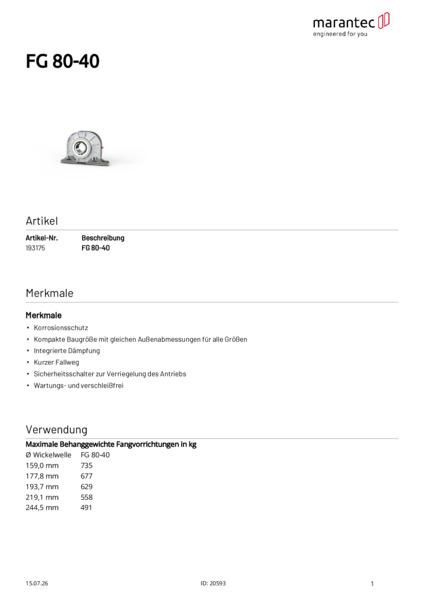

FG 80-40
Do you have a roller shutter that is equipped with a sprocket operator? Then you need an external safety catch to protect the door curtain from falling. However, roller doors with tubular motors installed inside the winding shaft also require a fall arrest system. The curtain weight must be at least 20 kg.Marantec, as an experienced manufacturer of rolling door operators, offers you two series - TS and F - to choose from: With the high-quality TS series, the safety catch can be reset and reused in a safety catch. Our F series, on the other hand, is a one-way safety gear that must be replaced in the event of an interception. It goes without saying that both series have the test certificates of a certified test center that are valid throughout Europe..
SKU
193175
Prices are only visible after login.
FG 80-40
Features:
- Corrosion protection
- Compact size with the same external dimensions for all sizes
- Integrated damping
- Short fall path
- Safety switch for interlocking the operator
- Maintenance and wear-free
FG 80-40
Product descriptive data
Protection class
IP65
Bearing type
pendulum bearing
Performance data
Torque of the safety catch (max.) [Nm]
2,260
Permissible torque [Nm]
800
Operating speed OPEN (max.) [rpm]
45
Operating speed CLOSED (max.) [rpm]
24
Dimensions and weights
Weight [kg]
3.9
Dimension A [mm]
180
Dimension A1 [mm]
90
Dimension B [mm]
62
Dimension C [mm]
270
Dimension C1 [mm]
115
Shaft support [mm]
40
