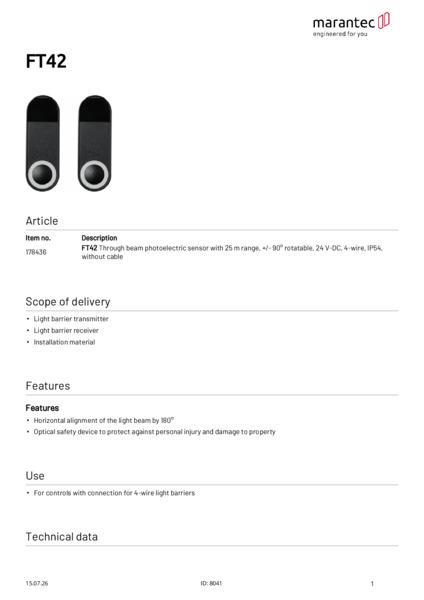

FT42 throughbeam photoelectric sensor with 25 m range, 4-wire, without cable

Unsere Parksysteme sind flexibel anpassbar. Sie sind nicht beschränkt auf eine Zufahrt, auch nicht auf die Zufahrtsregelung über Schranken. Sie können zusätzlich mit Rolltoren gesicherte Tiefgaragen ausstatten und verwalten. For controls with connection for 4-wire light barriers
SKU
178436
4062434006535
FT42 throughbeam photoelectric sensor with 25 m range, 4-wire, without cable

Scope of delivery:

  • Light barrier transmitter
  • Light barrier receiver
  • Installation material

Features:

  • Horizontal alignment of the light beam by 180°
  • Optical safety device to protect against personal injury and damage to property
FT42
Product descriptive data
Connection type Conventional
Outputs

1 potential-free relay contact (CO)
Interfaces 4-wire
Protection class IP54
Application area
Temperature (min./max.) [°C] -20/55
Performance data
Range [m] 25
Range (min./max.) [m] 0/25
Electrical data
Operating voltage [V] 12-24 V-AC 12-35 V-DC
Contact load (max.)

24 V-DC/1 A
Rated current [A] 0.037
Dimensions and weights
Dimensions (WxHxD) [mm] 30x120x30
Technical data
Download PDF Betriebsanleitung-FT22-FT32-FT42-DE-EN-FR-IT-ES-PT-PL-2013-05

Filetype: PDF

Language: DE, EN, FR, IT, ES, PT, PL


Published at: May 21, 2013 		Preview
